Comnet CNFE2MCPOEM transceiver/media converter, DIN Rail Mount

Free Delivery
£ 425 33
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

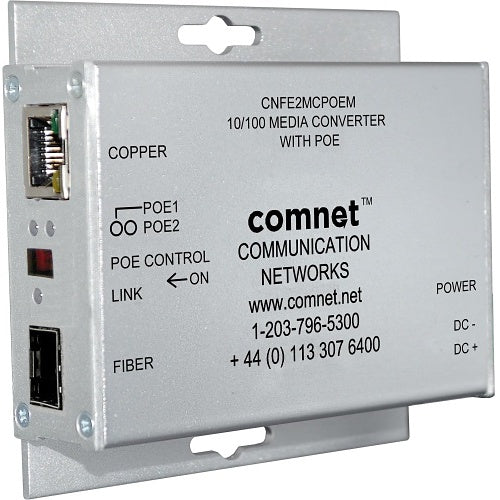

Comnet CNFE2MCPOEM is a transceiver/media converter from the CNFE2MCPOE[2,/M] range.

The Comnet CNFE2MCPOE[/M] Ethernet media converter is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP modules. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. The CNFE2MCPOE[/M] transmits and receives a single channel of Ethernet data.

It also supports IEEE 802.3at as Power Sourcing Equipment (PSE) with up to 30 Watts @ 48 VDC (not supported when installed in Comnet Rack). The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate.

It is environmentally hardened to operate in extreme conditions.

Key features

  • PoE Compatible: IEEE 802.3af and 802.3at compliant for PoE and PoE Plus
  • Optical port supports 100 Mbps full duplex data
£ 425 33
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£425.33 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
CNFE2MCPOEM
Product Series
CNFE2MCPOE[2,/M]
Product Type
Transceiver/Media Converter
Technical information
Media Type Supported
Optical Fiber, Twisted Pair
I/o expansions
Expansion Slot Type
SFP
Number of SFP Slots
1
Number of Total Expansion Slots
1
Interfaces/ports
Network (RJ-45)
Yes
Number of PoE (RJ-45) Ports
1
Number of Ports
1
Media & performance
Network Technology
100Base-FX, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
100 Mbps (Fast Ethernet)
Physical characteristics
Depth
27.90mm
Height
104.10mm
Width
94.00mm
Power description
Power Source
AC Power
Product information
Mount Type
DIN Rail Mount
Miscellaneous
Environmental status
Yes
Package Contents
Mini 10/100 Mbps Ethernet Media Conveter with PoE Power Supply
Attributes
Package Contents
Mini 10/100 Mbps Ethernet Media Conveter with PoE Power Supply
Power Source
AC Power

Specifications

Brand Name Comnet
Manufacturer Part Number CNFE2MCPOEM
Product Series CNFE2MCPOE[2,/M]
Product Type Transceiver/Media Converter

Technical information

Media Type Supported Optical Fiber, Twisted Pair

I/o expansions

Expansion Slot Type SFP
Number of SFP Slots 1
Number of Total Expansion Slots 1

Interfaces/ports

Network (RJ-45) Yes
Number of PoE (RJ-45) Ports 1
Number of Ports 1

Media & performance

Network Technology 100Base-FX, 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 100 Mbps (Fast Ethernet)

Physical characteristics

Depth 27.90mm
Height 104.10mm
Width 94.00mm

Power description

Power Source AC Power

Product information

Mount Type DIN Rail Mount

Miscellaneous

Environmental status Yes
Package Contents Mini 10/100 Mbps Ethernet Media Conveter with PoE Power Supply

Attributes

Package Contents Mini 10/100 Mbps Ethernet Media Conveter with PoE Power Supply
Power Source AC Power

Comnet CNFE2MCPOEM transceiver/media converter

Comnet CNFE2MCPOEM transceiver/media converter, DIN Rail Mount

Who this is for

For the installer — this is the transceiver/media converter supplied under Comnet part number CNFE2MCPOEM. Specify it by that part number.

In plain English: this is a transceiver/media converter made by Comnet. The part number CNFE2MCPOEM is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this transceiver/media converter is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact transceiver/media converter I have been quoted? Check the manufacturer part number CNFE2MCPOEM against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Comnet CNFE2MCPOEM transceiver/media converter
Comnet

Comnet CNFE2MCPOEM transceiver/media converter, DIN Rail Mount

£425.33

Please note: this is a non-returnable item (excluding faulty goods)

Comnet CNFE2MCPOEM is a transceiver/media converter from the CNFE2MCPOE[2,/M] range.

The Comnet CNFE2MCPOE[/M] Ethernet media converter is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP modules. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. The CNFE2MCPOE[/M] transmits and receives a single channel of Ethernet data.

It also supports IEEE 802.3at as Power Sourcing Equipment (PSE) with up to 30 Watts @ 48 VDC (not supported when installed in Comnet Rack). The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate.

It is environmentally hardened to operate in extreme conditions.
