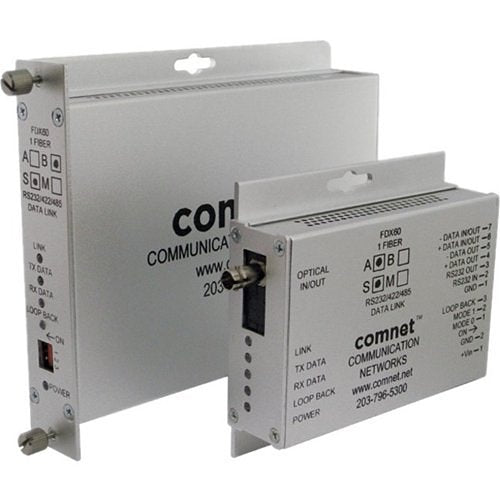

Comnet FDX60M1BM universal data transceiver, Surface Mount

Visit Data & Networking
Free Delivery
£ 447 69
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Comnet FDX60M1BM is an universal data transceiver from the FDX60(M,S)[-M] range.

The Comnet FDX60(M,S)[-M] data transceivers provide point-to-point transmission of simplex or duplex EIA RS232/RS422/RS485 (2W/4W) data signals over one or two optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. Models within this series are available for use with multimode or single mode optical fiber.

Key features

  • Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
  • NTCIP compatible
  • Wide optical dynamic range: optical attenuators are never required
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Meets EIA RS232C/D and RS422/RS485 (2 or 4-wire) specifications
  • Fiberlink Fiber Link Tester
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket).

If you are matching this to an existing installation, work from the FDX60M1BM part number rather than the description.

£ 447 69
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£447.69 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Comnet
Manufacturer Part Number
FDX60M1BM
Product Series
FDX60(M,S)[-M]
Product Type
Transceiver/Media Converter
General information
Packaged Quantity
1
Technical information
Fibre Optic Cable Standard
62.5 μm
Fibre Optic Mode
Multimode
Media Type Supported
Optical Fiber
Power Consumption
2.0000W
Interfaces/ports
Network (RJ-45)
Yes
Number of Ports
1
Number of ST Ports
1
Media & performance
Fibre Optic Wavelength
1310nm
Physical characteristics
Depth
154.90mm
Height
27.90mm
Width
134.60mm
Power description
Plug/Connector Type
Terminal Block
Power Source
AC Power
Product information
Mount Type
Surface Mount
Miscellaneous
Environmental status
Yes
Attributes
Package Contents
RS232/RS422/RS485 Data Transceiver; Power Supply
Power Source
AC Power
Fibre Optic Cable Standard
62.5 μm
Specifications
General information
Technical information
Interfaces/ports
Media & performance
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Comnet
Manufacturer Part Number FDX60M1BM
Product Series FDX60(M,S)[-M]
Product Type Transceiver/Media Converter

General information

Packaged Quantity 1

Technical information

Fibre Optic Cable Standard 62.5 μm
Fibre Optic Mode Multimode
Media Type Supported Optical Fiber
Power Consumption 2.0000W

Interfaces/ports

Network (RJ-45) Yes
Number of Ports 1
Number of ST Ports 1

Media & performance

Fibre Optic Wavelength 1310nm

Physical characteristics

Depth 154.90mm
Height 27.90mm
Width 134.60mm

Power description

Plug/Connector Type Terminal Block
Power Source AC Power

Product information

Mount Type Surface Mount

Miscellaneous

Environmental status Yes

Attributes

Package Contents RS232/RS422/RS485 Data Transceiver; Power Supply
Power Source AC Power
Fibre Optic Cable Standard 62.5 μm

Comnet FDX60M1BM universal data transceiver

Comnet FDX60M1BM universal data transceiver, Surface Mount

Who this is for

For the installer — this is the universal data transceiver supplied under Comnet part number FDX60M1BM. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an universal data transceiver made by Comnet. The part number FDX60M1BM is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this universal data transceiver is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact universal data transceiver I have been quoted? Check the manufacturer part number FDX60M1BM against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against FDX60M1BM answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
