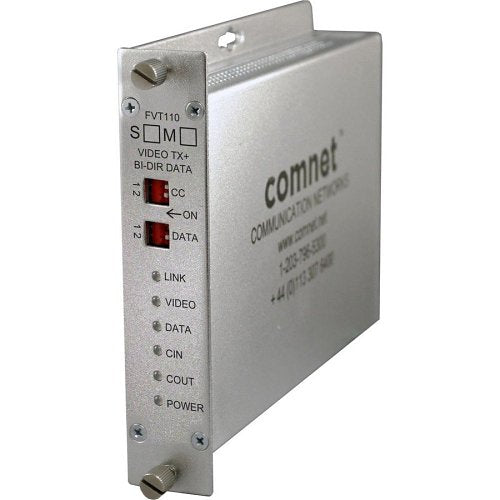

Comnet FVT110M1 video extender transmitter, Green
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet FVT110M1 is a video extender transmitter from the FVT/FVR110(M,S)1[/M] range.
The Comnet FVT/FVR110 series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports “up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km.
The FVT/FVR110 supports Panasonic Proteus™ , Pelco Coaxitron™ and Bosch Bilinx™ Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal.
Key features
- Supports Panasonic Proteus,Pelco Coaxitron and BoschBilinx Up-the-Coax systems
- 1 Full Duplex Data channel
- 1 Full Duplex Contact Closure
- Distances up to 30 miles (48 km)
- Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance
- Time-Based Corrected Up-the-Coax Data
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- Automatic resettable fuses on all power lines
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
If you are matching this to an existing installation, work from the FVT110M1 part number rather than the description.
-
Download
- FVT110M1 — User Manual
Specifications
Technical information
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | FVT110M1 |
| Product Series | FVT/FVR110(M,S)1[/M] |
| Product Type | Video Extender Transmitter |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Fibre Optic Cable Standard | 62.5/125μm |
| Fibre Optic Mode | Multimode |
| Maximum Operating Distance | 3km |
| Media Type Supported | Optical Fiber |
| Power Consumption | 5.2500W |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of ST Ports | 1 |
| Serial Port | Yes |
Physical characteristics
| Colour | Green |
|---|---|
| Height | 28.00mm |
| Width | 135.00mm |
Power description
| Plug/Connector Type | BNC, Terminal Block |
|---|
Product information
| Mount Type | Rack Mount, Wall Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|
Attributes
| Package Contents | Video Transmitter/Data Transceiver; DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz |
|---|---|
| Fibre Optic Cable Standard | 62.5/125μm |
