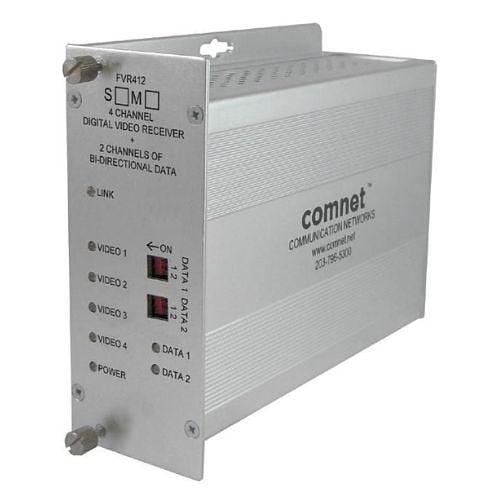

Comnet FVR412S1 video receiver, Rack Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet FVR412S1 is a video receiver from the FVT/FVR412(M)(S)1 range.
The Comnet FVT/FVR412(M)(S)1 Series transmits four channels of video utilizing state of the art digital encoding and decoding for high-quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are required.
Key features
- One bi-directional contact closure
- Standard ComFit models are hot-swappable
- Supports RS232, RS422, and 2- or 4-wire RS485
- Compatible with NTSC, PAL, or SECAM Video Standards
- Status indicating LEDs provide rapid indication of critical operating parameters
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- 10-Bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard
- ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket)
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Tested and certified by an independent laboratory for full compliance with the environmental requirements of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
-
Download
- FVR412S1 — Product Manual
Specifications
General information
Technical information
I/o expansions
Interfaces/ports
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | FVR412S1 |
| Product Series | FVT/FVR412(M)(S)1 |
| Product Type | Video Extender Transceiver |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Media Type Supported | Fiber Optic |
| Power Consumption | 4.0000W |
I/o expansions
| Number of Total Expansion Slots | 2 |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of ST Ports | 1 |
Physical characteristics
| Depth | 83.82mm |
|---|---|
| Form Factor | Rack Mount |
| Height | 83.82mm |
| Width | 134.62mm |
Power description
| Power Source | AC Power |
|---|
Product information
| Mount Type | Rack Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Package Contents | DC Plug-in Power Supply, 90-264 VAC, 50-60 Hz Video Receiver/Data Transceiver (1550/1310 nm) |
Attributes
| Package Contents | DC Plug-in Power Supply, 90-264 VAC, 50-60 Hz Video Receiver/Data Transceiver (1550/1310 nm) |
|---|---|
| Power Source | AC Power |
