Connectix Cabling Systems 002-005-004-91 tube fibre cable, Black

£ 4 13
(Incl. VAT) RRP: £4.96
Save £0.83

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Connectix Cabling Systems 002-005-004-91 is a tube fibre cable.

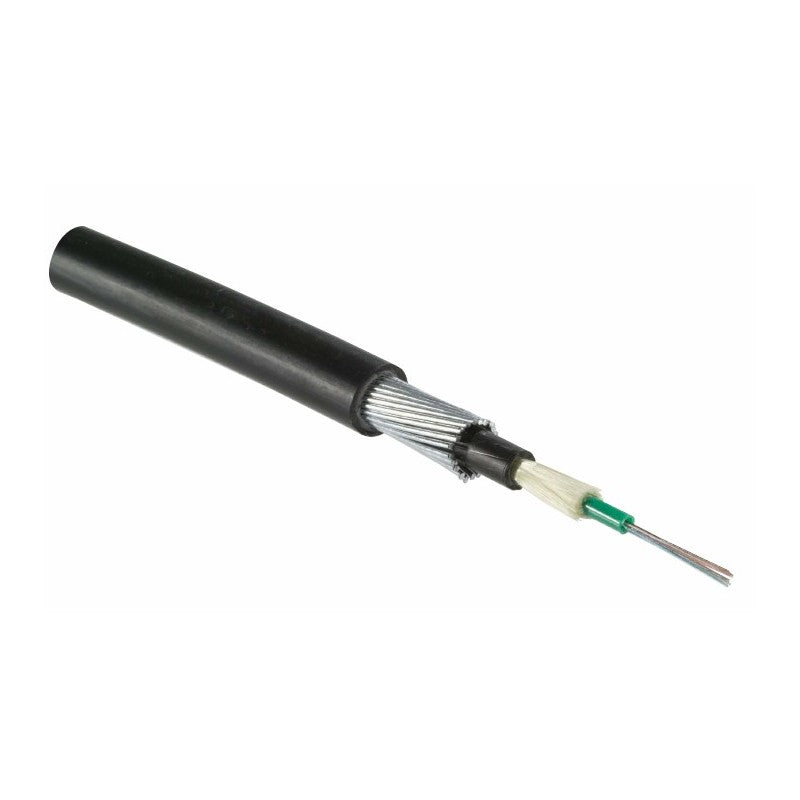

Starlight™ SWA Uni Tube Fibre Cable is suitable for direct burial installations, making it the perfect solution for the most demanding and harsh environments. The SWA fibre cable has excellent tensile strength, and the layer of 0.9mm steel wire provides reliable rodent protection. The fibre cable core consists of a central jelly-filled green polyester tube, containing up to 24 optical fibres.

The tube is protected with an aramid strength member and a 1.1mm thick FireBur® LSZH sheath, plus a layer of 0.9mm galvanised wire armouring. All of this is surrounded by a 1.5mm thick black FireBur® LSZH sheath, which protects the cable and construction and is highly resistant to moisture ingress. A choice of multimode and singlemode fibre types and specifications are offered, ranging from 4 to 24 fibre configurations.

This tough, rugged cable is ideal for all external environments, including direct burial, tunnels, and heavy-duty ducts.

Key features

  • 4 to 24 fibre configuration
  • Suitable for indoor and outdoor usage
  • Waterproof
  • Rodent proof
  • Cables have a LSZH flame retardant sheath
  • Suitable for direct burial
  • Available in 50/125, 62.5/125 and singlemode fibre types

If you are matching this to an existing installation, work from the 002-005-004-91 part number rather than the description.

£ 4 13
RRP: £4.96 Save £0.83
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£4.13 Incl. VAT £4.96
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Connectix Cabling Systems
Manufacturer Part Number
002-005-004-91
Product Type
Network Cable
Technical information
Cable Type
Fibre Optic
Conductor Material
Copper
Core/Cladding Diameter
50/125μm
Device Supported
Network Device
Fibre Category
OM3
Fibre Count
16
Fibre Optic Mode
Multimode, Single-mode
Jacket Type
Armored, Halogen-Free Jacket
Environmental conditions
Operating Temperature (T-T)
-40°C-70°C
Physical characteristics
Colour
Black
Jacket Material
LSOH
Material
Polyester
Product information
Diameter
10.70mm
Miscellaneous
Features
Bendable, Crush Resistant, Flame Retardant, Heavy Duty, Impact Resistant, Loose Tube, Moisture Resistant, Rodent proof, Rodent Resistant, Rugged, UV Resistant, Water Proof
Attributes
Device Supported
Network Device
Indoor or outdoor use
Indoor, Outdoor
Core/Cladding Diameter
50/125μm

Specifications

Brand Name Connectix Cabling Systems
Manufacturer Part Number 002-005-004-91
Product Type Network Cable

Technical information

Cable Type Fibre Optic
Conductor Material Copper
Core/Cladding Diameter 50/125μm
Device Supported Network Device
Fibre Category OM3
Fibre Count 16
Fibre Optic Mode Multimode, Single-mode
Jacket Type Armored, Halogen-Free Jacket

Environmental conditions

Operating Temperature (T-T) -40°C-70°C

Physical characteristics

Colour Black
Jacket Material LSOH
Material Polyester

Product information

Diameter 10.70mm

Miscellaneous

Features Bendable, Crush Resistant, Flame Retardant, Heavy Duty, Impact Resistant, Loose Tube, Moisture Resistant, Rodent proof, Rodent Resistant, Rugged, UV Resistant, Water Proof

Attributes

Device Supported Network Device
Indoor or outdoor use Indoor, Outdoor
Core/Cladding Diameter 50/125μm

Connectix Cabling Systems 002-005-004-91 tube fibre cable

Connectix Cabling Systems 002-005-004-91 tube fibre cable, Black

Who this is for

For the installer — this is the tube fibre cable supplied under Connectix Cabling Systems part number 002-005-004-91. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a tube fibre cable made by Connectix Cabling Systems. The part number 002-005-004-91 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this tube fibre cable is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact tube fibre cable I have been quoted? Check the manufacturer part number 002-005-004-91 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 002-005-004-91 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Connectix Cabling Systems 002-005-004-91 tube fibre cable
Connectix Cabling Systems

Connectix Cabling Systems 002-005-004-91 tube fibre cable, Black

£4.13 £4.96

Please note: this is a non-returnable item (excluding faulty goods)

Connectix Cabling Systems 002-005-004-91 is a tube fibre cable.

Starlight™ SWA Uni Tube Fibre Cable is suitable for direct burial installations, making it the perfect solution for the most demanding and harsh environments. The SWA fibre cable has excellent tensile strength, and the layer of 0.9mm steel wire provides reliable rodent protection. The fibre cable core consists of a central jelly-filled green polyester tube, containing up to 24 optical fibres.

The tube is protected with an aramid strength member and a 1.1mm thick FireBur® LSZH sheath, plus a layer of 0.9mm galvanised wire armouring. All of this is surrounded by a 1.5mm thick black FireBur® LSZH sheath, which protects the cable and construction and is highly resistant to moisture ingress. A choice of multimode and singlemode fibre types and specifications are offered, ranging from 4 to 24 fibre configurations.

This tough, rugged cable is ideal for all external environments, including direct burial, tunnels, and heavy-duty ducts.

Key features

If you are matching this to an existing installation, work from the 002-005-004-91 part number rather than the description.
