CQR SO/PICCOLO/WB/G3 sounder, White
£
14
16
(Incl. VAT)
About this product

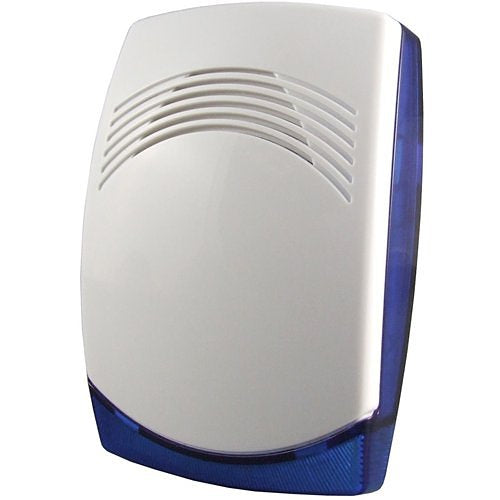

CQR SO/PICCOLO/WB/G3 is a low profile Grade 3 internal strobe sounder.
This remotely powered sounder gives audible and visual indication, with a white body and blue lens.
Key features
- Sound output 112dB(A)
- Selectable alternating or continuous tone
- Flashing alarm indication
- Low current consumption
- Tamper protected lid and mounting
- Security Grade 3, Environmental Class II
- Size: 125 x 85 x 37.5mm
£
14
16
Price
Technical Details
Specifications
Brand Name
CQR
Manufacturer Part Number
SO/PICCOLO/WB/G3
Product Type
Strobe Sounder
Security Grade
3
Environmental Class
II
Sounder Type
Quasi Dynamic
Sound Output
112dB(A)
Nominal Voltage
12Vdc
Flash Only Current
17mA
Sound Only Current
84mA
Temperature Range
-10°C to +40°C
IP Rating
4X
Colour
White
Lens Colour
Blue
Material
Polycarbonate
Dimensions
125 x 85 x 37.5mm
General information
Application/Usage
Building, Indoor, Security
Technical information
Alarm Type
Audible, Visual
Certifications
Security Grade
Grade 3
Environmental conditions
Sound Emission
112dB
Physical characteristics
Colour
White
Depth
125.00mm
Height
35.00mm
Lens Colour
Blue
Weight
0.17kg
Width
90.00mm
Power description
Input Voltage
15V DC
Power Source
DC Power
Miscellaneous
Indoor or outdoor use
Indoor
Attributes
Input Voltage
15V DC
Power Source
DC Power
Weight
0.17kg
Specifications
| Brand Name | CQR |
|---|---|
| Manufacturer Part Number | SO/PICCOLO/WB/G3 |
| Product Type | Strobe Sounder |
| Security Grade | 3 |
| Environmental Class | II |
| Sounder Type | Quasi Dynamic |
| Sound Output | 112dB(A) |
| Nominal Voltage | 12Vdc |
| Flash Only Current | 17mA |
| Sound Only Current | 84mA |
| Temperature Range | -10°C to +40°C |
| IP Rating | 4X |
| Colour | White |
| Lens Colour | Blue |
| Material | Polycarbonate |
| Dimensions | 125 x 85 x 37.5mm |
General information
| Application/Usage | Building, Indoor, Security |
|---|
Technical information
| Alarm Type | Audible, Visual |
|---|
Certifications
| Security Grade | Grade 3 |
|---|
Environmental conditions
| Sound Emission | 112dB |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 125.00mm |
| Height | 35.00mm |
| Lens Colour | Blue |
| Weight | 0.17kg |
| Width | 90.00mm |
Power description
| Input Voltage | 15V DC |
|---|---|
| Power Source | DC Power |
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Input Voltage | 15V DC |
|---|---|
| Power Source | DC Power |
| Weight | 0.17kg |
