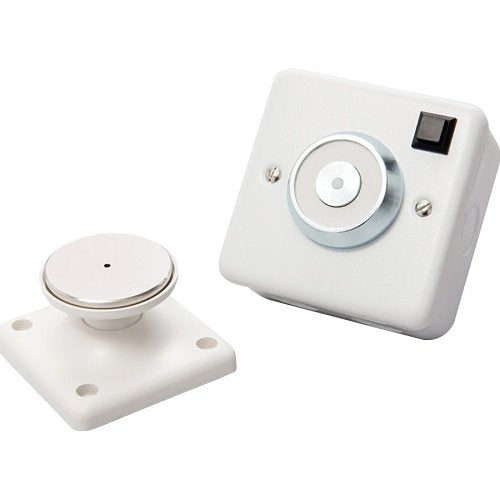

Cranford Controls 302-070 electromagnetic door holder, White
About this product
Cranford Controls 302-070 is an electromagnetic door holder from the DRW range.
The DRW door retainer is available in two casings, a flame retardent low profile ABS plastic body, specially designed for Cranford and a single gang metal-bodied version. Each unit features a spring-loaded release pin mounted centrally within the electromagnet ensuring that on power off the fire door is pushed safely and effectively away from the keeper plate. The 200N version is available as either a dc or ac unit and 500N version available as dc only.
Key features
- Manual release button
- Provided complete with keeper plate
- Rapid and easy installation
- Additional accessory products available
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Cranford Controls |
|---|---|
| Manufacturer Part Number | 302-070 |
| Product Series | DRW |
| Product Type | Electromagnetic Door Holder |
General information
| Application/Usage | Door, Fire Door |
|---|
Technical information
| Placement | Wall |
|---|
Certifications
| Certifications & Standards | EN 61000-3-2 EN 50081-1 EN 60950 EN 1155 IP51 |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | White |
|---|---|
| Height | 95.00mm |
| Material | Metal |
| Weight | 0.42kg |
| Width | 81.00mm |
Power description
| Input Voltage | 230V AC |
|---|
Product information
| Holding Force | 20.39kg |
|---|---|
| Mount Type | Wall Mount |
Miscellaneous
| Additional Information | Nom. current consumption (mA): 12 Maximum holding force (newtons): 250 |
|---|---|
| Features | Flame Retardant, Low Profile Design, Magnetic, Spring Ejector |
| Package Contents | DRW Electromagnetic Door Holder Keeper Plate |
Attributes
| Input Voltage | 230V AC |
|---|---|
| Package Contents | DRW Electromagnetic Door Holder Keeper Plate |
| Weight | 0.42kg |
| Additional Information | Nom. current consumption (mA): 12 Maximum holding force (newtons): 250 |
Cranford Controls 302-070 electromagnetic door holder, White
