Cranford Controls 402-003 toilet alarm kit, Red
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Cranford Controls 402-003 is a toilet alarm kit.

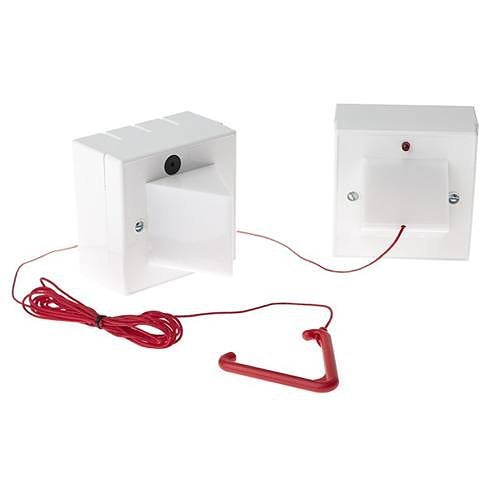

The Wireless Toilet Alarm is designed to meet the needs of the DDA (Disability Discrimination Act) in all public buildings and to provide a fully featured system at an economical cost. The installation of this type of system is very simple, requiring only two screws to fix each unit in its required place. The basic system comprises a ceiling mounted pull cord unit with reassurance LED.
This unit should be installed on the ceiling at a convenient position above the toilet so that the pull cord is close by for the occupant to use. The red reassurance LED must be visible to the person using the toilet. The over-door sounder/beacon unit should be installed outside the toilet on a wall above the door if possible.
The units run on self contained battery power , with a long life battery and automatic battery monitoring. When the battery requires replacing the over door sounder/beacon will beep to indicate which unit has sent the battery low signal. Having no wiring connecting the units makes the kit extremely flexible.
The units can easily be moved as required and extra units can be added at any time. Pull cord once for alert and twice to reset. Complies with EN 300 220-3 and EN 301 489-3.
Booster available (Part No. 402-004) to increase possible transmission range.
Key features
- Fully programmable IS’s in both units for multiple onsite installations
- Complies with EN 300 220-3 and EN 301 489-3
- Battery life minimum of 1 year with low battery warning built-in
If you are matching this to an existing installation, work from the 402-003 part number rather than the description.
Specifications
General information
Technical information
Certifications
Environmental conditions
Physical characteristics
Product information
Attributes
Specifications
| Brand Name | Cranford Controls |
|---|---|
| Manufacturer Part Number | 402-003 |
| Product Type | Toilet Alarm Kit |
General information
| Application/Usage | Building, Outdoor, Public Access Area, Signaling, Toilet |
|---|
Technical information
| Alarm Type | Audible, Visual |
|---|---|
| Light Colour | Red |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Exempt |
Environmental conditions
| Sound Emission | 65dB |
|---|
Physical characteristics
| Colour | Red |
|---|---|
| Weight | 0.40kg |
Product information
| Bulb/Tube Type | LED Bulb |
|---|---|
| Mount Type | Ceiling Mount |
Attributes
| Weight | 0.40kg |
|---|
