Citronic: 170.841UK, CSP Series Compact Powered Mixer, 8 Input, 200W, 24-Bit DSP

Product Overview & Key Benefits

The CSP Series Compact Powered Mixers with DSP is an innovative audio solution perfect for musicians, DJs, and sound engineers looking for high-quality sound in a compact format. This powered mixer features balanced mic/line inputs and a range of stereo inputs, each equipped with a 3-band EQ and aux send, delivering exceptional sound quality and versatility. Additionally, it includes a 16 program digital signal processing (DSP) section, offering various vocal effects perfect for live performances. Its built-in stereo amplifier provides sufficient power for medium-sized venues, making it an ideal choice for mobile PA systems, bars, and special events.

Technical Specifications & Product Details

• Model:CSP Series Compact Powered Mixer
• Supplier SKU:170.841UK
• Variant:8 input, 2 x 200W
• Weight:6.8 kg

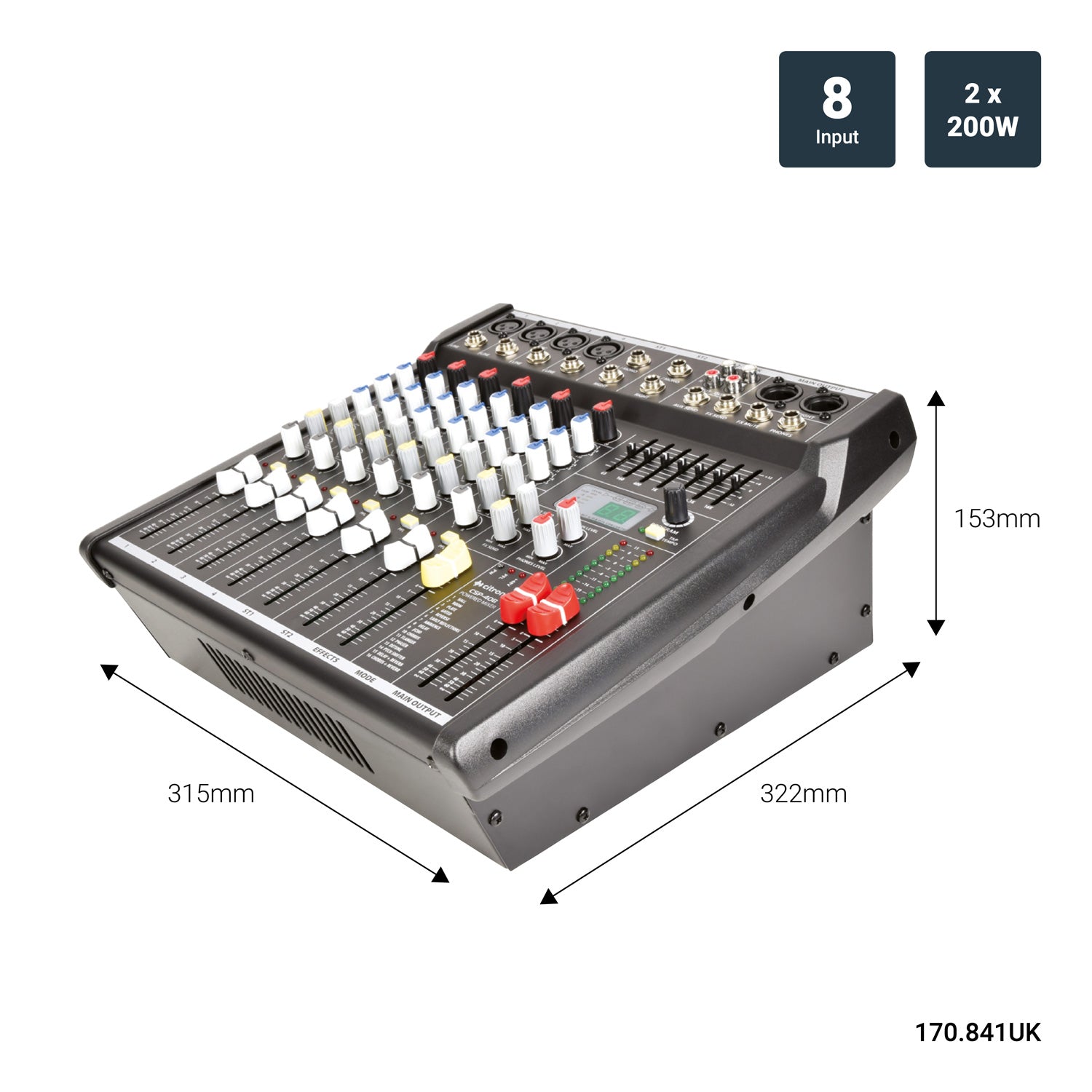

• Dimensions:315 x 322 x 153 mm
• Power Supply:230Vac 50Hz (IEC)
• Power Consumption:600W
• Output Power:2 x 130Wrms @ 8 Ohms2 x 200Wrms @ 4 Ohms
• Inputs:4 x balanced XLRF/TRS jack2 x RCA in & out (-2dBu)
• Outputs:L+R speaker connectorsHeadphone output (6.3mm jack, 30-600 Ohms)
• Crosstalk:>85dB (fader mute), >82dB (channel)
• Signal to Noise Ratio:-122dBu (EIN), -82dBu (mix)
• Frequency Response:20Hz-30kHz (0.5dB)
• Microphone Phantom Power:+48V (for XLR inputs)
• EQ:Low: 80Hz ±15dB shelvingMid: 2.5kHz ±15dB band passHigh: 12kHz ±15dB shelving
• DSP Effects:16 program DSP (24-bit sigma-delta, 40kHz)

Ideal Uses & Applications

This compact powered mixer is an excellent choice for a variety of applications, including:

• Domestic DIY:Whether you're setting up for a home event or simply enjoying music with family, this mixer provides all the necessary features for quality audio output.
• Commercial Buildings:Perfect for corporate events, seminars, or any public speaking engagements, ensuring that speakers are heard clearly.
• Hospitality Settings:Utilize this mixer in restaurants, bars, or cafes to enhance the atmosphere with live music or effective sound reinforcement.
• Office Environments:Ideal for meetings and presentations, allowing seamless integration of various audio inputs.

Energy Efficiency & Cost Savings

Designed with energy efficiency in mind, the CSP Series Compact Powered Mixers offer a powerful yet economic solution for audio amplification. Its 600W power consumption ensures that users can achieve high-quality sound without excessive energy usage, potentially saving up to 30% on electricity compared to larger alternatives. This makes the mixer not only a smart choice for sound quality but also for eco-conscious users who wish to lower their carbon footprint while enjoying excellent performance.
