Citronic: 178.716UK, CUBA Full Range Wooden PA Cabinet, 15", 450W, Black
About this product

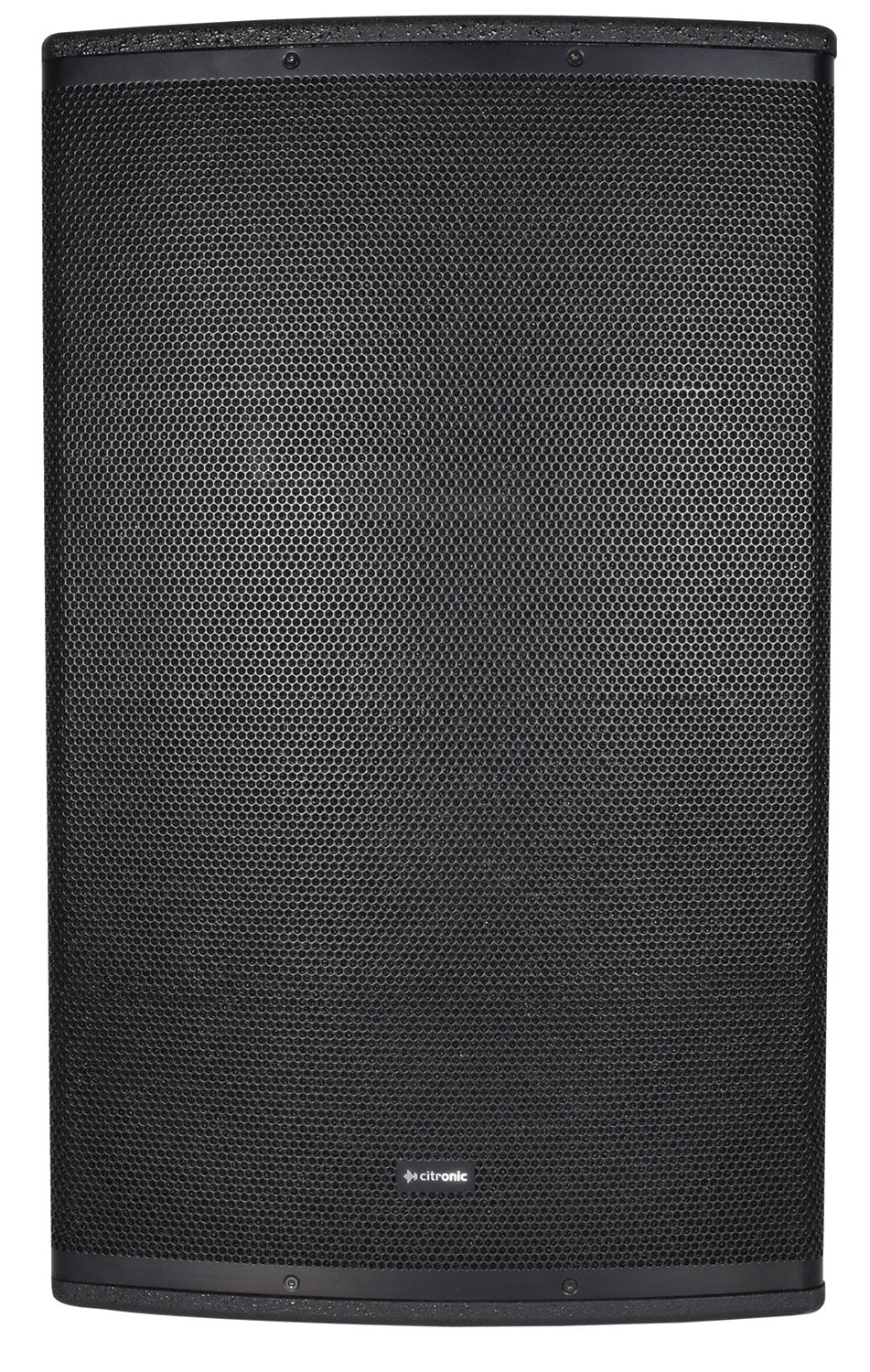

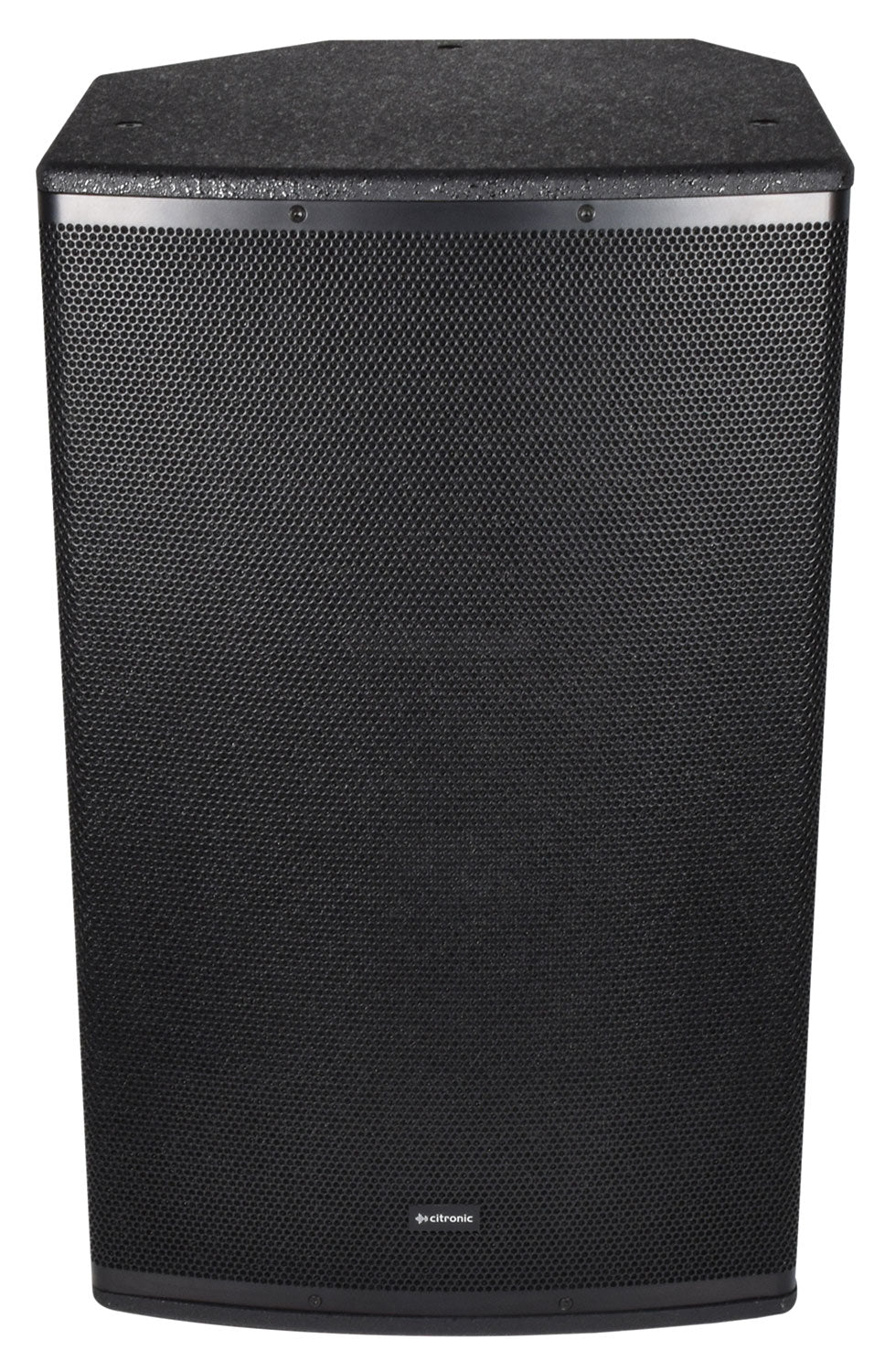

CUBA Full Range Wooden PA Cabinets
Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies.
- Hard-wearing polyurea cabinet coating
- CUBA-8 & CUBA-10 supplied with a U-bracket
- 35mm pole mount socket and M8 flying points
- Custom designed high power LF and HF drivers

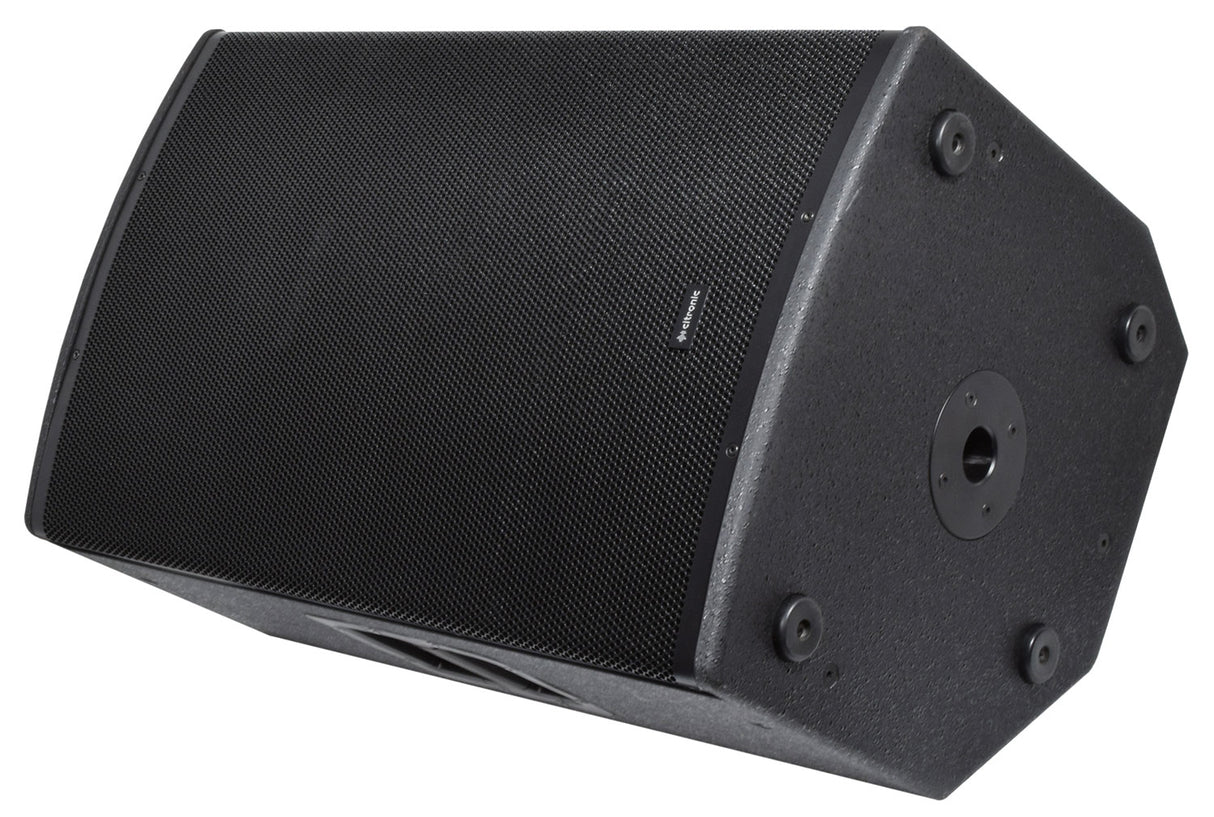

The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.
Specifications
Specifications
| Input | 2 x parallel SPK socket |
|---|---|
| Colour | Black |
| Weight | 23.5 kg |
| Max. SPL | 124.0 dB |
| HF driver | 44 mmØ (1.75") Ti compression driver |
| Impedance | 8 Ohms |
| Voice coil | 64 mmØ (2.5") |
| Main driver | 380 mmØ (15") |
| Sensitivity | 99 dB |
| Construction | Polyurea coated MDF + powder-coated steel grille |
| HF dispersion | 90° x 60° |
| Frequency response | 45 Hz - 20 kHz |
| Power handling : max | 900 W |
| Power handling : rms | 450 W |
CUBA PA Cabinet (15", 450W, Black) features
Citronic: 178.716UK, CUBA Full Range Wooden PA Cabinet, 15", 450W, Black
