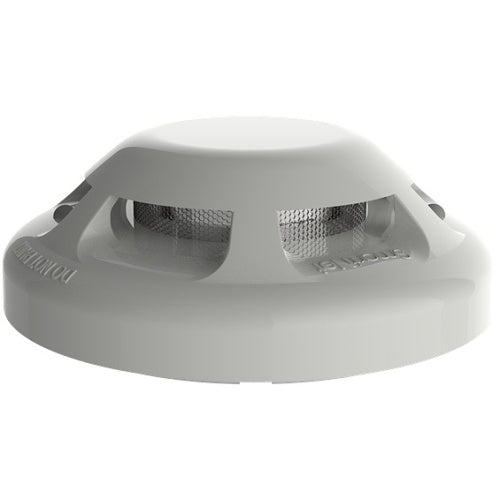

Cygnus SN.DTS0.1 smoke detector
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Cygnus SN.DTS0.1 is a smoke detector from the SmartNet range.
The SmartNet optical addressable smoke detectors offer early stage fire detection and use advanced technology to reduce the risk of false alarms. System software provides analogue detector discrimination and each detector features a red LED indicator in alarm mode to help you quickly identify the location of a fire. Detectors are easily configured and can be programmed into a system using the SmartNet configuration software, wirelessly or by cable.
Each detector features a multi colour LED for status indication and dual fire LEDs for fire indication when in pre-alarm or alarm mode. The wireless addressable base enables communication between the detector and the control panel - this is achieved through the Cygnus wireless protocol. This device is battery-powered and has a minimum three year battery life.
SmartNet wireless fire detection and alarm devices are battery-powered and energy-efficient and will operate continuously for a minimum of three years, in accordance with EN 54.
Key features
- Reliable wireless mesh radio technology
- Completely wireless - no cables required
- Sensitive radio with up to 350m range
- 868MHz radio (915MHz also available)
- 3+ year battery life
- Designed to be EN 54 compliant
- Certified by Intertek
- Easy configuration via the Windows based CygnusConfig application
- Compatible with other Cygnus SmartNet devices
If you are matching this to an existing installation, work from the SN.DTS0.1 part number rather than the description.
Specifications
Battery information
Certifications
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Cygnus |
|---|---|
| Manufacturer Part Number | SN.DTS0.1 |
| Product Series | SmartNet |
| Product Type | Smoke Detector |
Battery information
| Battery Voltage | 3.60V |
|---|
Certifications
| WEEE compliance | Compliant |
|---|
Physical characteristics
| Height | 85.00mm |
|---|
Power description
| Input Voltage | 2.5-3.8V |
|---|
Product information
| Diameter | 123.00mm |
|---|
Attributes
| Input Voltage | 2.5-3.8V |
|---|
