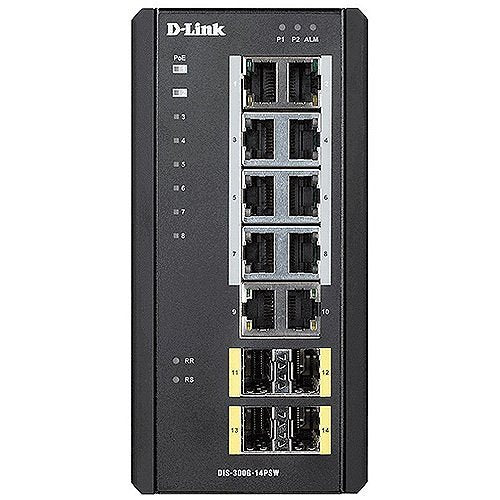

D-Link DIS-300G-14PSW managed PoE switch, DIN Rail, Wall Mount
Free Delivery
£
1,588
37
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
D-Link DIS-300G-14PSW is a managed PoE switch from the DIS-300G-14PSW range.
The DIS-300G-14PSW incorporates several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data retransmission. The DIS-300G-14PSW also features Quality of Service (QoS) which prioritizes network traffic so that time-sensitive data, such as VoIP or high-quality video streaming, are unaffected even during bursts of high data traffic.
Key features
- 8x10/100/1000 BASE-T PoE Ports
- 2x10/100/1000 BASE-T Ports
- 4xSFP Ports
- 1xRJ-45 Console port
- A wide variety of port options offers the flexibility to choose the best switch for the situation, including PoE options
- High redundancy features to provide industrial-grade reliability
- Shock and vibration resistance further boost resilience to outside conditions
- Reverse Polarity Protection prevents damage in case of accidental incorrect wiring setup
- Fanless design for silent operation
£
1,588
37
Price
Technical Details
Specifications
Brand Name
D-Link
Manufacturer Part Number
DIS-300G-14PSW
Product Series
DIS-300G-14PSW
Product Type
Ethernet Switch
Technical information
Media Type Supported
Optical Fiber, Twisted Pair
Power Consumption
240.0000W
I/o expansions
Expansion Slot Type
SFP
Number of SFP Slots
4
Number of Total Expansion Slots
4
Shared SFP Slot
No
Interfaces/ports
Modular
Yes
Total Number of Network Ports
10
Uplink Port
Yes
Management & protocols
Manageable
Yes
Media & performance
Network Technology
1000Base-T, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Layer Supported
2
Networking Standards
IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Physical characteristics
Depth
154.00mm
Height
128.00mm
Width
77.00mm
Power description
Input Voltage
12-58V DC
Power Source
AC Power
Product information
Mount Type
DIN Rail Mount, Wall Mount
Attributes
Environmental status
Yes
Input Voltage
12-58V DC
Power Source
AC Power
Number of SFP Slots
4
Specifications
| Brand Name | D-Link |
|---|---|
| Manufacturer Part Number | DIS-300G-14PSW |
| Product Series | DIS-300G-14PSW |
| Product Type | Ethernet Switch |
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Power Consumption | 240.0000W |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 4 |
| Number of Total Expansion Slots | 4 |
| Shared SFP Slot | No |
Interfaces/ports
| Modular | Yes |
|---|---|
| Total Number of Network Ports | 10 |
| Uplink Port | Yes |
Management & protocols
| Manageable | Yes |
|---|
Media & performance
| Network Technology | 1000Base-T, 100Base-TX, 10Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|---|
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
Physical characteristics
| Depth | 154.00mm |
|---|---|
| Height | 128.00mm |
| Width | 77.00mm |
Power description
| Input Voltage | 12-58V DC |
|---|---|
| Power Source | AC Power |
Product information
| Mount Type | DIN Rail Mount, Wall Mount |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 12-58V DC |
| Power Source | AC Power |
| Number of SFP Slots | 4 |
D-Link DIS-300G-14PSW managed PoE switch, DIN Rail, Wall Mount
