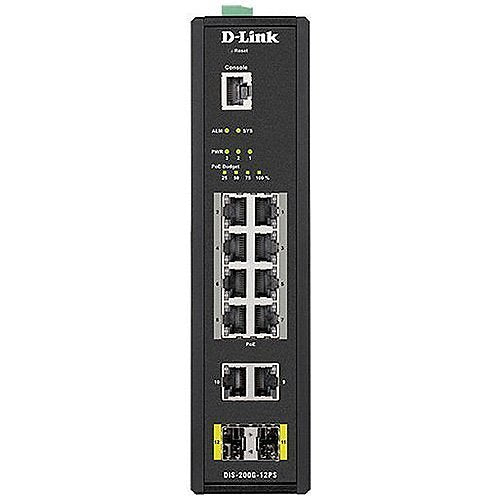

D-Link DIS-200G-12S smart managed switch, DIN Rail, Rack, Wall Mount

Free Delivery
£ 558 87
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

D-Link DIS-200G-12S is a smart managed switch from the DIS-200G-12S range.

The DIS-200G Series Industrial Gigabit Smart Managed Switches are equipped with 10 x 10/100/1000BASE-T ports (8 x PoE-enabled on DIS-200G-12PS) and 2 x SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet, capable of withstanding harsh environments. The DIS-200G Series furthermore integrates advanced management and security functions to provide a complete industrial networking solution.

The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions and withstand wide temperature range, vibrations and shock. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-200G Series while also being able to operate in a wider temperature range of up to 65 °C.

For increased flexibility, the DIS-200G Series can be mounted on a DIN rail or wall-mounted. Additionally, the DIS-200G Series features high-capacity 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The built-in surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting through the amount of power required for the switch to operate normally.

This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.

Key features

  • 8x10/100/1000BASE-T PoE ports
  • 2x10/100/1000BASE-T ports
  • 2xSFP Ports
  • 1xRJ-45 Console port
  • Robust industry-standard enclosure
  • High EMC endurance
  • Built-In 6kV surge protection
  • Industrial model variations with wider operating temperature ranges

If you are matching this to an existing installation, work from the DIS-200G-12S part number rather than the description.

£ 558 87
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£558.87 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
D-Link
Manufacturer Part Number
DIS-200G-12S
Product Series
DIS-200G-12S
Product Type
Ethernet Switch
General information
Packaged Quantity
1
Technical information
Media Type Supported
Optical Fiber, Twisted Pair
Power Consumption
10.2600W
I/o expansions
Expansion Slot Type
SFP
Number of SFP Slots
2
Number of Total Expansion Slots
2
Shared SFP Slot
No
Interfaces/ports
Modular
Yes
Total Number of Network Ports
10
Uplink Port
No
Management & protocols
Manageable
Yes
Media & performance
Network Technology
1000Base-T, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Layer Supported
2
Networking Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Physical characteristics
Depth
171.20mm
Height
48.00mm
Material
Metal
Width
210.00mm
Power description
Input Voltage
12-48V DC
Power Source
AC Power
Redundant Power Supply
Yes
Product information
Mount Type
DIN Rail Mount, Rack Mount, Wall Mount
Attributes
Input Voltage
12-48V DC
Power Source
AC Power
Number of SFP Slots
2

Specifications

Brand Name D-Link
Manufacturer Part Number DIS-200G-12S
Product Series DIS-200G-12S
Product Type Ethernet Switch

General information

Packaged Quantity 1

Technical information

Media Type Supported Optical Fiber, Twisted Pair
Power Consumption 10.2600W

I/o expansions

Expansion Slot Type SFP
Number of SFP Slots 2
Number of Total Expansion Slots 2
Shared SFP Slot No

Interfaces/ports

Modular Yes
Total Number of Network Ports 10
Uplink Port No

Management & protocols

Manageable Yes

Media & performance

Network Technology 1000Base-T, 100Base-TX, 10Base-T

Network & communication

Ethernet Technology 1 Gbps (Gigabit Ethernet)
Layer Supported 2
Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z

Physical characteristics

Depth 171.20mm
Height 48.00mm
Material Metal
Width 210.00mm

Power description

Input Voltage 12-48V DC
Power Source AC Power
Redundant Power Supply Yes

Product information

Mount Type DIN Rail Mount, Rack Mount, Wall Mount

Attributes

Input Voltage 12-48V DC
Power Source AC Power
Number of SFP Slots 2

D-Link DIS-200G-12S smart managed switch

D-Link DIS-200G-12S smart managed switch, DIN Rail, Rack, Wall Mount

Who this is for

For the installer — this is the smart managed switch supplied under D-Link part number DIS-200G-12S. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a smart managed switch made by D-Link. The part number DIS-200G-12S is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this smart managed switch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact smart managed switch I have been quoted? Check the manufacturer part number DIS-200G-12S against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against DIS-200G-12S answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
