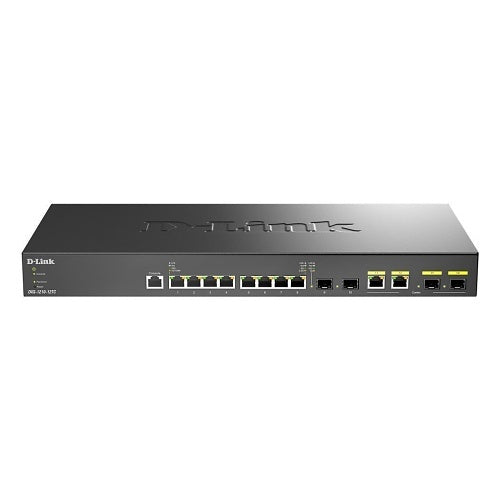

D-Link DXS-1210-12TC smart managed switch, Desktop Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
D-Link DXS-1210-12TC is a smart managed switch from the DXS-1210 range.
The D-Link DXS-1210 Series 10 Gigabit/Multi-Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switch series capable of servicing a range of network needs in any business. Supporting 10GBASE-T/SFP+ combo ports, this series provides connection flexibility across a network allowing easier network integration. The support for IEEE 802.3bt on 10GBASE-T ports of DXS-1210-10MP takes it one step further to facilitate surveillance infrastructure and integrated multimedia solutions with the series’s dynamic and automated approach to provisioning IP telephony and surveillance equipment.
The Power over Ethernet (PoE) combined with advanced features such as VLAN and QoS makes this series a great aid to augmenting your existing network with business-grade communication capability or building a new corporate branch or organization network with the required performance and security.
Key features
- 8 X 100M/1G/2.5G/5G/10GBASE-T ports
- 2 X 1G/10G SFP+ ports
- 2 X 1G/10GBASE-T/SFP+ combo ports
- Advanced security features to help protect your network
- Supports a wide variety of management tools and utilities for efficient operation
Specifications
General information
Technical information
I/o expansions
Interfaces/ports
Management & protocols
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | D-Link |
|---|---|
| Manufacturer Part Number | DXS-1210-12TC |
| Product Series | DXS-1210 |
| Product Type | Switch and Bridge |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Media Type Supported | Fiber Optic |
|---|---|
| Power Consumption | 59.1000W |
I/o expansions
| Number of SFP Slots | 2 |
|---|---|
| Number of Total Expansion Slots | 4 |
Interfaces/ports
| Total Number of Network Ports | 12 |
|---|
Management & protocols
| Manageable | Yes |
|---|
Media & performance
| Network Technology | 10GBase-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet), 10 Gbps |
|---|---|
| Layer Supported | Yes |
| Networking Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Physical characteristics
| Depth | 210.00mm |
|---|---|
| Height | 44.00mm |
| Width | 210.00mm |
Power description
| Input Voltage | 100-240V DC |
|---|---|
| PoE (RJ-45) Port | No |
Product information
| Length | 440.00mm |
|---|---|
| Mount Type | Desktop Mount |
Miscellaneous
| Environmental status | Yes |
|---|
Attributes
| Features | 2 X 1G/10G SFP+ ports, 2 X 1G/10GBASE-T/SFP+ combo ports, 8 X 100M/1G/2.5G/5G/10GBASE-T ports, Advanced security features to help protect your network, Supports a wide variety of management tools and utilities for efficient operation |
|---|---|
| Input Voltage | 100-240V DC |
| Number of SFP Slots | 2 |
