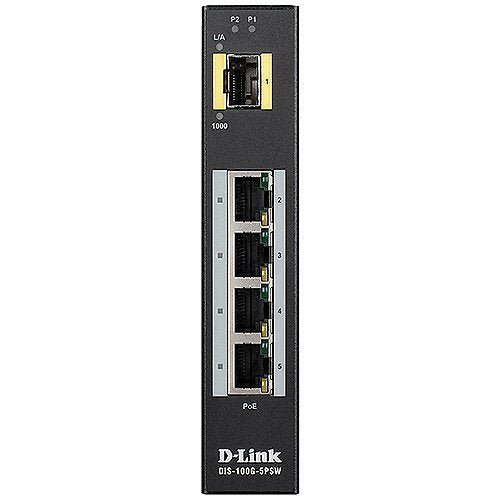

D-Link DIS-100G-5PSW unmanaged PoE switch, DIN Rail, Wall Mount
Free Delivery
£
527
01
(Incl. VAT)
About this product
Please note: this is a non-returnable item (excluding faulty goods)
D-Link DIS-100G-5PSW is an unmanaged PoE switch from the DIS-100G range.
The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are plug-and-play, allowing for effortless and swift deployment.
Key features
- Four 10/100/1000BASE-T PoE ports
- One Gigabit SFP port
- IP30-Rated solid metal housing
- High EMC endurance
- Dual power input for redundant power supplies
- DIN-rail and wall mounting options
- Robust 120W PoE power budget
- Compliant with EN-50121-4 wayside control and NEMA-TS2 traffic control standards
£
527
01
Price
Technical Details
Specifications
Brand Name
D-Link
Manufacturer Part Number
DIS-100G-5PSW
Product Series
DIS-100G
Product Type
Ethernet Switch
General information
Packaged Quantity
1
Technical information
Media Type Supported
Optical Fiber, Twisted Pair
Network Switch Type
Unmanaged
Power Consumption
131.5700W
I/o expansions
Expansion Slot Type
SFP
Number of SFP Slots
1
Number of Total Expansion Slots
1
Shared SFP Slot
No
Interfaces/ports
Modular
Yes
Total Number of Network Ports
4
Uplink Port
No
Management & protocols
Manageable
No
Media & performance
Network Technology
1000Base-T, 100Base-TX
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Layer Supported
2
Networking Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Physical characteristics
Depth
107.00mm
Height
29.00mm
Width
139.00mm
Power description
Input Voltage
48-58V DC
PoE Budget
120W
Power Source
AC Power
Product information
Mount Type
DIN Rail Mount, Wall Mount
Miscellaneous
Environmental certification
CE, EN50121-4 compliant, NEMA-TS2, UL, UL C1D2 compliant
Attributes
Environmental status
Yes
Input Voltage
48-58V DC
Power Source
AC Power
Number of SFP Slots
1
Specifications
| Brand Name | D-Link |
|---|---|
| Manufacturer Part Number | DIS-100G-5PSW |
| Product Series | DIS-100G |
| Product Type | Ethernet Switch |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Network Switch Type | Unmanaged |
| Power Consumption | 131.5700W |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Shared SFP Slot | No |
Interfaces/ports
| Modular | Yes |
|---|---|
| Total Number of Network Ports | 4 |
| Uplink Port | No |
Management & protocols
| Manageable | No |
|---|
Media & performance
| Network Technology | 1000Base-T, 100Base-TX |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|---|
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
Physical characteristics
| Depth | 107.00mm |
|---|---|
| Height | 29.00mm |
| Width | 139.00mm |
Power description
| Input Voltage | 48-58V DC |
|---|---|
| PoE Budget | 120W |
| Power Source | AC Power |
Product information
| Mount Type | DIN Rail Mount, Wall Mount |
|---|
Miscellaneous
| Environmental certification | CE, EN50121-4 compliant, NEMA-TS2, UL, UL C1D2 compliant |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 48-58V DC |
| Power Source | AC Power |
| Number of SFP Slots | 1 |
D-Link DIS-100G-5PSW unmanaged PoE switch, DIN Rail, Wall Mount
