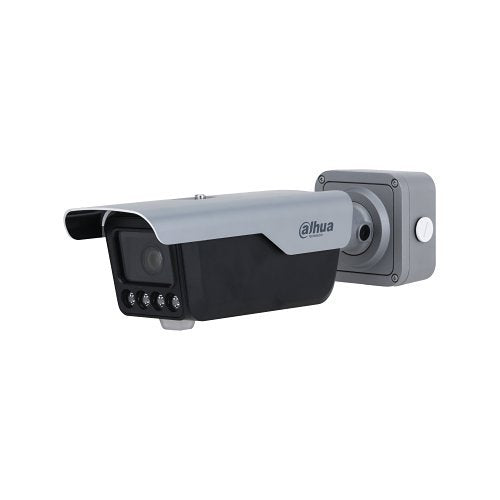

Dahua Technology DHI-ITC413-PW4D-IZ1 access anpr camera, 4MP
Free Delivery
About this product
Dahua Technology DHI-ITC413-PW4D-IZ1 is an access anpr camera.
Using deep learning algorithms, Smart ANPR Camera can recognize vehicles, license plates, vehicle brands and vehicle colors. It can be used in scenarios that require vehicle detection and recognition. It also supports using IVS to detect events, and triggers sound and light alarms.
The camera can perform various functions without being connected to other devices, which not only greatly improves the security of factories and compounds, but also simplifies the installation process. The camera is dustproof, waterproof, and tamper-proof, and is IP67 rated and IK10 rated.
Key features
- Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited
- Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers
- Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles
- High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7
- All-in-one structure with junction box and bracket, and it is also low power consumption
- Easily adapts to scenarios through its motorized vari-focal lens
- Built-in LED for simplified installation and commissioning
- IP67 and IK10 rated
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DHI-ITC413-PW4D-IZ1
Product Type
Bullet Cameras
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.4
Maximum Frame Rate
30fps
Minimum Focal Length
2.70mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Number of IR LEDs
4
Optical Zoom
4.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Video Signal Format
NTSC, PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2688 x 1520
Number of Sensors
1
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-30°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/25 Second
Minimum Illumination
0.0010lux
Shortest Shutter Speed
1/10000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.7-12mm
Lens Included
Yes
Maximum Focal Length
12.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
Silver
Depth
127.80mm
Durability
Dustproof, Waterproof
Height
120.80mm
Weight
2.30kg
Width
120.80mm
Power description
Input Voltage
12V DC
Product information
Length
396.00mm
Mount Type
Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount
Storage
Storage Type
microSD Card
Video
Maximum Resolution
2688 x 1520
Miscellaneous
Features
Automatic White Balance, Built-in Microphone, Built-in Speaker, Day/Night, Highlight Compensation (HLC), Wide Dynamic Range
Attributes
Input Voltage
12V DC
Weight
2.30kg
Impact protection
IK10
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DHI-ITC413-PW4D-IZ1 |
| Product Type | Bullet Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.70mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Number of IR LEDs | 4 |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|---|
| Number of Sensors | 1 |
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Minimum Illumination | 0.0010lux |
| Shortest Shutter Speed | 1/10000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.7-12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 127.80mm |
| Durability | Dustproof, Waterproof |
| Height | 120.80mm |
| Weight | 2.30kg |
| Width | 120.80mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Length | 396.00mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | microSD Card |
|---|
Video
| Maximum Resolution | 2688 x 1520 |
|---|
Miscellaneous
| Features | Automatic White Balance, Built-in Microphone, Built-in Speaker, Day/Night, Highlight Compensation (HLC), Wide Dynamic Range |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 2.30kg |
| Impact protection | IK10 |
