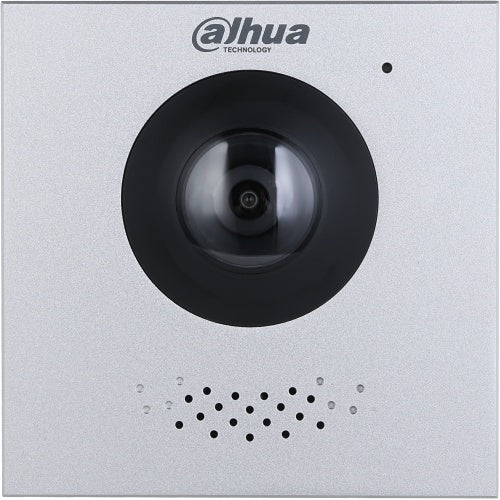

Dahua Technology DHI-VTO4202F-P-S3 apartment door station, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DHI-VTO4202F-P-S3 is an apartment door station from the Pro range.
The Dahua DHI-VTO4202F-P-S3 is a modular apartment door station designed for video intercom applications. It features an anodized aluminum front panel and a CMOS low illumination 2MP HD colorful camera with a wide 168.6° field of view. The station supports surface and flush mounting options and includes video intercom functionality with mobile phone app integration for remote communication and unlocking.
Rated IK07 and IP65 with silicone sealant required, it offers versatile power options including 12VDC, 600 mA and standard PoE according to 8023at standards, supporting H265 and H264 video compression.
Key features
- Anodized aluminum front panel
- CMOS Low illumination 2MP HD colorful 1686° camera
- Video intercom function
- Provides 12VDC, 600 mA power
- Mobile phone app, talk to the visitor or unlock the door remotely on your phone
- IK07 and IP65 rated (silicone sealant is required for the shell, see the quick start guide)
- Support surface and flush mount
- Support H265 and H264
- Standard PoE power supply (if the VTO device with 12V power output needs to charge the load, it should be connected to a PSE switch that complies with the 8023at standard)
If you are matching this to an existing installation, work from the DHI-VTO4202F-P-S3 part number rather than the description.
-
Download
- DHI-VTO4202F-P-S3 — User Manual
Specifications
Technical information
Physical characteristics
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DHI-VTO4202F-P-S3 |
| Product Series | Pro |
| Product Type | Intercom & Entry Accessory |
Technical information
| Effective resolution | 2MP |
|---|---|
| Power Consumption | 4.0000W |
Physical characteristics
| Colour | Silver |
|---|---|
| Form Factor | Door |
