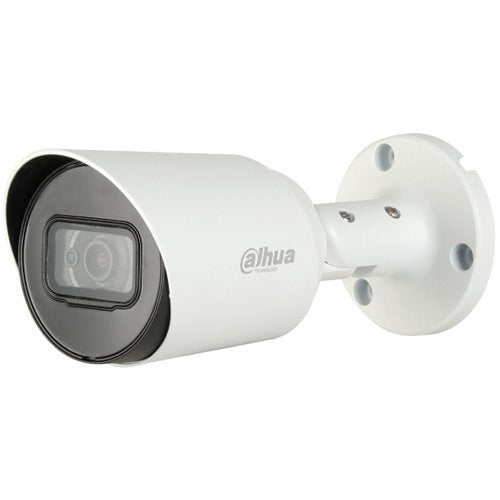

Dahua Technology DH-HAC-HFW1500TP-A-0280B-S2 bullet camera, 5MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-HAC-HFW1500TP-A-0280B-S2 is a bullet camera from the Lite range.
System Overview
Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output.
Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.Functions4 Signals over 1 Coaxial Cable HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.Long Distance Transmission HDCVI technology guarantees real-time transmission at long distance without any loss.
It supports up to 700 m for 5MP HD video through coaxial cable, and up to 300 m through UTP cable.SimplicityHDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.Smart IRThe camera is designed with IR LED illumination for best lowlight performance.
Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera
Key features
- Max. 20fpsat 5MP
- HD and SD output switchable
- 3.6mm fixed lens (2.8mm, 6mm optional)
Specifications
Technical information
Camera
Certifications
Environmental conditions
Exposure
Lens
Network & communication
Physical characteristics
Power description
Product information
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-HAC-HFW1500TP-A-0280B-S2 |
| Product Series | Lite |
| Product Type | Bullet Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Number of IR LEDs | 1 |
| Video Resolution | 1280 x 720 |
| Video Signal Format | PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP67 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Minimum Illumination | 0.0050lux |
| Shortest Shutter Speed | 1/100000 Second |
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | No |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dust Resistant, Water Resistant |
| Form Factor | Bullet |
| Weight | 360.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount |
|---|
Video
| Analog Video Signal Format | AHD, CVBS (Composite Video Baseband Signal), HD-CVI |
|---|
Miscellaneous
| Features | 2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Mirror, Privacy Masking |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 360.00g |
