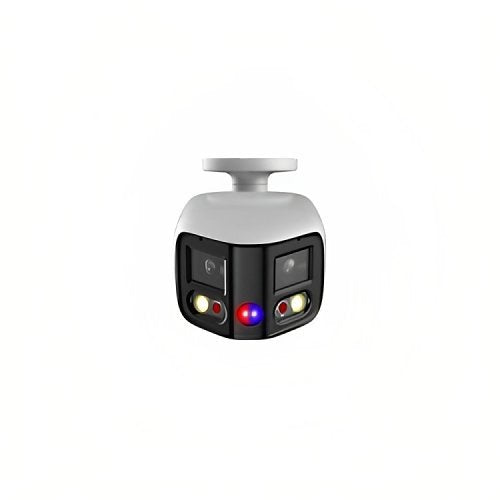

Dahua Technology DH-IPC-PFW3849SP-A180-E2-AS-PV-0280 bullet network camera
Free Delivery
About this product
Dahua Technology DH-IPC-PFW3849SP-A180-E2-AS-PV-0280 is a bullet network camera from the WizSense 3 range.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Key features
- Outputs 180 degrees wide angle splicing image
- Outputs max. 8MP (4096 × 1860) at 20 fps
- H.265 Codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, the max. IR illumination distance is 25m and warm light distance is 20m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- WDR, 3D NR, HLC, BLC, Digital watermarking, applicable to various monitoring scenes
- Alarm, 1 input, 1 output; audio, 1 input, 1 output; supports max. 256GB Micro SD card; built in dual mic; built in speaker, support two-way talk
- 12V DC/PoE Power supply, easy for installation
- IP67 Protection
- Sound and light alarm (red and blue lights)
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-IPC-PFW3849SP-A180-E2-AS-PV-0280
Product Series
WizSense 3
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Aperture
f/1.4
Maximum Frame Rate
20fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Number of IR LEDs
2
Video Formats
AI H.264, AI H.265, H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264+, H.265 / HEVC, H.265+, MJPEG, Smart H.264+, Smart H.265+
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
25.00m
Certifications
Ingress protection
IP67
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof
Form Factor
Bullet
Height
78.00mm
Weight
695.00g
Width
99.00mm
Power description
Input Voltage
12V DC
Product information
Length
183.10mm
Mount Type
Ceiling Mount, Junction Box Mount, Pole Mount
Storage
Storage Type
SD Card
Miscellaneous
Features
Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Built-in Speaker, Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Motion Detection, Noise Reduction, Privacy Masking, Region of Interest, White Balance, Wide Dynamic Range
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC
Weight
695.00g
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-IPC-PFW3849SP-A180-E2-AS-PV-0280 |
| Product Series | WizSense 3 |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 20fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Number of IR LEDs | 2 |
| Video Formats | AI H.264, AI H.265, H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264+, H.265 / HEVC, H.265+, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 25.00m |
Certifications
| Ingress protection | IP67 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof |
| Form Factor | Bullet |
| Height | 78.00mm |
| Weight | 695.00g |
| Width | 99.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Length | 183.10mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Pole Mount |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Built-in Speaker, Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Motion Detection, Noise Reduction, Privacy Masking, Region of Interest, White Balance, Wide Dynamic Range |
|---|
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 695.00g |
