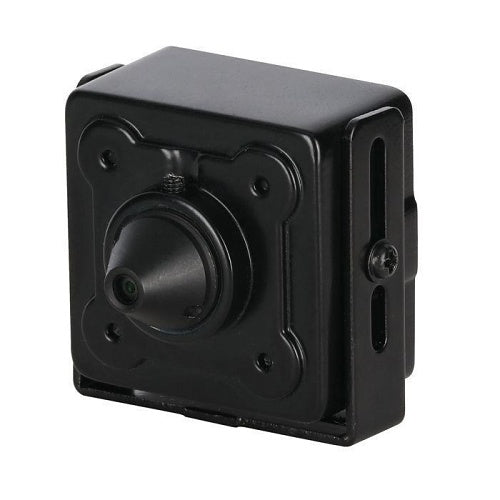

Dahua Technology DH-HAC-HUM3201BP-0280P-S2 camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-HAC-HUM3201BP-0280P-S2 is a camera from the Micro-size Series range.
Experience full HD 1080P video with the simplicity of using existing cabling infrastructure. The starlight HDCVI pinhole camera presents high-quality image with rich details even under extreme lowlight environment and supports 120dB true WDR. It offers multi-language OSD and HD/SD switchable output.
The compact design and high image performance makes the pinhole camera an ideal choice for invisible monitoring applications such as ATM.
Key features
- Starlight, 120dB true WDR, 3DNR
- Max 30fp at 1080P
- HD and SD output switchable
- 2.8mm Fixed lens
- Audio in interface
- 12VDC
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-HAC-HUM3201BP-0280P-S2
Product Series
Micro-size Series
Product Type
Camera
Technical information
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Aperture
f/2.4
Maximum Frame Rate
30fps
Night Vision
Yes
Night Vision Type
Infrared (IR)
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Minimum Illumination
0.0004lux
Shortest Shutter Speed
1/100000 Second
Lens
Focal Length
2.8mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Physical characteristics
Colour
Black
Depth
66.40mm
Form Factor
Pinhole
Height
36.20mm
Weight
0.04kg
Width
43.50mm
Power description
Input Voltage
12V DC
Video
Analog Video Signal Format
CVBS (Composite Video Baseband Signal)
Maximum Resolution
1920 x 1080
Miscellaneous
Environmental certification
CE, FCC, UL
Environmental status
Yes
Indoor or outdoor use
Indoor
Attributes
Input Voltage
12V DC
Weight
0.04kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-HAC-HUM3201BP-0280P-S2 |
| Product Series | Micro-size Series |
| Product Type | Camera |
Technical information
| Effective resolution | 2MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/2.4 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Minimum Illumination | 0.0004lux |
| Shortest Shutter Speed | 1/100000 Second |
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 66.40mm |
| Form Factor | Pinhole |
| Height | 36.20mm |
| Weight | 0.04kg |
| Width | 43.50mm |
Power description
| Input Voltage | 12V DC |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 1920 x 1080 |
Miscellaneous
| Environmental certification | CE, FCC, UL |
|---|---|
| Environmental status | Yes |
| Indoor or outdoor use | Indoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 0.04kg |
Dahua Technology DH-HAC-HUM3201BP-0280P-S2 camera, 2MP
