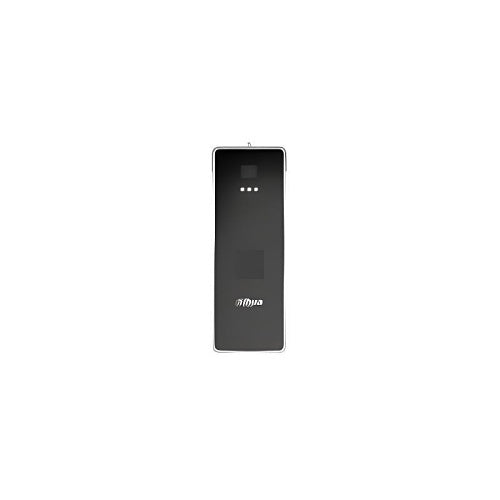

Dahua Technology ITC416-PL8I-IZ cmos image sensor, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology ITC416-PL8I-IZ is a cmos image sensor.
Equipped with a high-performance CMOS image sensor and processor, Dahua 4MP Access ANPR Camera continuously extracts metadata 24/7. It adopts intelligent deep learning algorithms that allow it to recognize unlicensed vehicles, vehicle types and vehicle colors. This low power consumption camera also has an all in one structure with an embedded RS-485 IR illuminator that allow it to easily adapt to scenarios.
It also supports floor standing installation, making it easy to install.
Key features
- High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7
- Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles
- Built-in signal port, data port, and communication port assist in controlling external devices such as entry and exit barriers
- Built-in LED for simplified installation and commissioning
- All-in-one structure with junction box and bracket, and it is also low power consumption
- Easily adapts to scenarios through its motorized vari-focal lens
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
ITC416-PL8I-IZ
Technical information
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.8
Maximum Frame Rate
30fps
Night Vision
Yes
Night Vision Type
Infrared (IR)
Video Formats
H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, MJPEG
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP54
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/25 Second
Minimum Illumination
0.0010lux
Shortest Shutter Speed
1/100000 Second
Lens
Focal Length
2.7-12mm
Maximum Focal Length
12.00mm
Physical characteristics
Height
711.00mm
Width
221.00mm
Power description
Input Voltage
12V DC
Product information
Length
254.00mm
Video
Maximum Resolution
2688 x 1520
Miscellaneous
Environmental certification
CE
Attributes
Environmental status
Yes
Input Voltage
12V DC
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | ITC416-PL8I-IZ |
Technical information
| Effective resolution | 4MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.8 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP54 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Minimum Illumination | 0.0010lux |
| Shortest Shutter Speed | 1/100000 Second |
Lens
| Focal Length | 2.7-12mm |
|---|---|
| Maximum Focal Length | 12.00mm |
Physical characteristics
| Height | 711.00mm |
|---|---|
| Width | 221.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Length | 254.00mm |
|---|
Video
| Maximum Resolution | 2688 x 1520 |
|---|
Miscellaneous
| Environmental certification | CE |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 12V DC |
