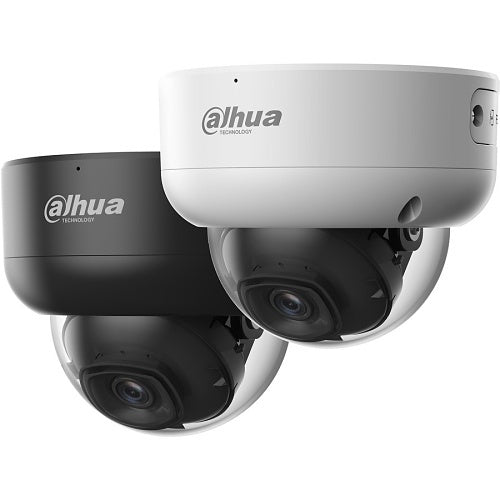

Dahua Technology DH-IPC-HDBW3541EP-S-0280B-S2 dome IP camera, 5MP
Free Delivery
About this product
Dahua Technology DH-IPC-HDBW3541EP-S-0280B-S2 is a dome IP camera from the 3 range.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions
Key features
- 5-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images
- Outputs max. 5MP (2960 × 1668) at 20 fps and supports 4MP (2688 × 1520) at 25/30 fps
- H.265 codec allows high compression ratio and ultra-low bit rate
- Built-in IR LED, max. IR distance: 50 m
- ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic
- 12 VDC/PoE power supply, easy for installation
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-IPC-HDBW3541EP-S-0280B-S2
Product Series
3
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Aperture
f/1.4
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
3
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
50.00m
Certifications
Ingress protection
IP67
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Minimum Illumination
0.0005lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm, 3.6mm, 6mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Water Resistant
Form Factor
Dome
Height
89.10mm
Weight
516.00g
Power description
Input Voltage
12V DC
Product information
Diameter
111.70mm
Mount Type
Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Miscellaneous
Features
Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Highlight Compensation (HLC), Region of Interest, SD Card Local Storage, Wide Dynamic Range
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
12V DC
Weight
516.00g
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-IPC-HDBW3541EP-S-0280B-S2 |
| Product Series | 3 |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 3 |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 50.00m |
Certifications
| Ingress protection | IP67 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm, 3.6mm, 6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Water Resistant |
| Form Factor | Dome |
| Height | 89.10mm |
| Weight | 516.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 111.70mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Highlight Compensation (HLC), Region of Interest, SD Card Local Storage, Wide Dynamic Range |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 516.00g |
