Dahua Technology DH-SD59225DB-HC dome PTZ camera, 2MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

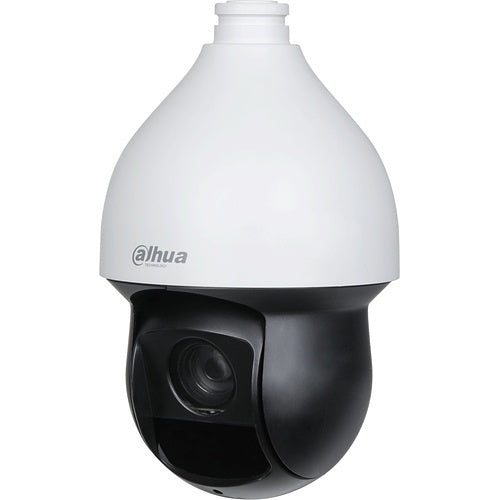

Dahua Technology DH-SD59225DB-HC is a dome PTZ camera from the HDCVI range.

With its powerful optical zoom and accurate pan and tilt capabilities, the HDCVI PTZ camera series provides an all-in-one solution for largescale monitoring. It harnesses the latest starlight technology, allowing it to produce highly detailed images even in low light conditions. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small and medium-sized scenes.

Key features

  • 1/2.8" 2MP STARVIS CMOS
  • Powerful 25x optical zoom
  • Starlight technology
  • 120dB true WDR, 3D NR
  • Max. 25/30 fps at 1080p, 25/30/50/60 fps at 720p
  • IR distance up to 150m
  • IP66

If you are matching this to an existing installation, work from the DH-SD59225DB-HC part number rather than the description.

Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SD59225DB-HC
Product Series
HDCVI
Product Type
Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
4.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
4
Optical Zoom
25.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Signal Format
HD-CVI
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
150.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/30000 Second
Lens
Focal Length
4.8-120mm
Lens Included
Yes
Maximum Focal Length
120.00mm
Minimum Aperture
f/3.5
Physical characteristics
Form Factor
Dome
Height
310.00mm
Weight
3.90kg
Power description
Input Voltage
24V DC
Product information
Diameter
185.70mm
Mount Type
Ceiling Mount, Corner Mount, Parapet Mount, Pole Mount, Surface Mount, Wall Mount
Video
Maximum Resolution
1920 x 1080
Miscellaneous
Environmental certification
CE, FCC, UL
Environmental status
Yes
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
24V DC
Weight
3.90kg

Specifications

Brand Name Dahua Technology
Manufacturer Part Number DH-SD59225DB-HC
Product Series HDCVI
Product Type Camera

Technical information

Connectivity Technology Wired
Effective resolution 2MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Varifocal
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 4.80mm
Night Vision Yes
Night Vision Type Infrared (IR)
Number of IR LEDs 4
Optical Zoom 25.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Signal Format HD-CVI
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 150.00m

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 70°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/3 Second
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/30000 Second

Lens

Focal Length 4.8-120mm
Lens Included Yes
Maximum Focal Length 120.00mm
Minimum Aperture f/3.5

Physical characteristics

Form Factor Dome
Height 310.00mm
Weight 3.90kg

Power description

Input Voltage 24V DC

Product information

Diameter 185.70mm
Mount Type Ceiling Mount, Corner Mount, Parapet Mount, Pole Mount, Surface Mount, Wall Mount

Video

Maximum Resolution 1920 x 1080

Miscellaneous

Environmental certification CE, FCC, UL
Environmental status Yes
Indoor or outdoor use Indoor, Outdoor

Attributes

Input Voltage 24V DC
Weight 3.90kg

Dahua Technology DH-SD59225DB-HC dome PTZ camera

Dahua Technology DH-SD59225DB-HC dome PTZ camera, 2MP

Who this is for

For the installer — this is the dome PTZ camera supplied under Dahua Technology part number DH-SD59225DB-HC. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a dome PTZ camera made by Dahua Technology. The part number DH-SD59225DB-HC is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this dome PTZ camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact dome PTZ camera I have been quoted? Check the manufacturer part number DH-SD59225DB-HC against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against DH-SD59225DB-HC answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Dahua Technology DH-SD59225DB-HC dome PTZ camera
Dahua Technology

Dahua Technology DH-SD59225DB-HC dome PTZ camera, 2MP
