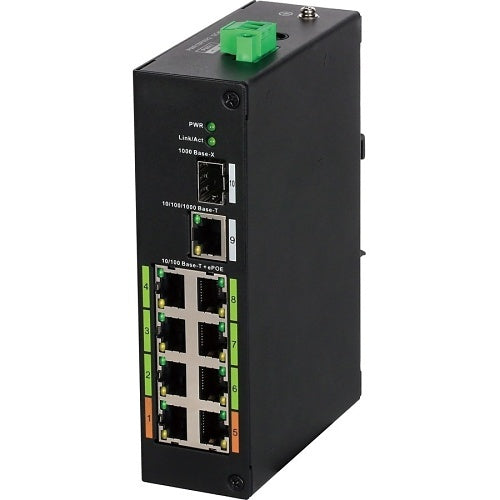

Dahua Technology DH-LR2110-8ET-120 epoe switch, DIN Rail, Rack Mount
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-LR2110-8ET-120 is an epoe switch from the Network Transmission range.
DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch.
It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Key features
- Layer-two ePoE switch
- MAC auto study and aging, MAC address list capacity is 8K
- Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
- Industrial wide temperature design
- Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
-
Download
- DH-LR2110-8ET-120 — User Manual
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-LR2110-8ET-120
Product Series
Network Transmission
Product Type
Ethernet Switch
General information
Packaged Quantity
1
Technical information
Media Type Supported
Optical Fiber, Twisted Pair
Network Switch Type
Unmanaged
Power Consumption
120.0000W
I/o expansions
Expansion Slot Type
SFP
Number of SFP Slots
1
Number of Total Expansion Slots
1
Interfaces/ports
Modular
Yes
Network (RJ-45)
Yes
Total Number of Network Ports
8
Uplink Port
Yes
Management & protocols
Manageable
No
Media & performance
Network Technology
1000Base-T, 100Base-TX, 10Base-T
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet), 100 Mbps (Fast Ethernet)
Layer Supported
2
Networking Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Physical characteristics
Depth
100.00mm
Height
42.00mm
Width
150.00mm
Power description
Input Voltage
54V DC
PoE (RJ-45) Port
Yes
PoE Budget
120W
Power Source
AC Power
Product information
Length
150.00mm
Mount Type
DIN Rail Mount, Rack Mount
Miscellaneous
Environmental certification
CE
Environmental status
Yes
Features
Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards, Industrial wide temperature design, Layer-two ePoE switch, MAC auto study and aging, MAC address list capacity is 8K, Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10, Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt power supply standard, Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
Attributes
Input Voltage
54V DC
Power Source
AC Power
Number of SFP Slots
1
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-LR2110-8ET-120 |
| Product Series | Network Transmission |
| Product Type | Ethernet Switch |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Network Switch Type | Unmanaged |
| Power Consumption | 120.0000W |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
Interfaces/ports
| Modular | Yes |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Uplink Port | Yes |
Management & protocols
| Manageable | No |
|---|
Media & performance
| Network Technology | 1000Base-T, 100Base-TX, 10Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet), 100 Mbps (Fast Ethernet) |
|---|---|
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Physical characteristics
| Depth | 100.00mm |
|---|---|
| Height | 42.00mm |
| Width | 150.00mm |
Power description
| Input Voltage | 54V DC |
|---|---|
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120W |
| Power Source | AC Power |
Product information
| Length | 150.00mm |
|---|---|
| Mount Type | DIN Rail Mount, Rack Mount |
Miscellaneous
| Environmental certification | CE |
|---|---|
| Environmental status | Yes |
| Features | Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards, Industrial wide temperature design, Layer-two ePoE switch, MAC auto study and aging, MAC address list capacity is 8K, Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10, Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt power supply standard, Supports long distance PoE transmission up to 800m with ePoE technology of Dahua |
Attributes
| Input Voltage | 54V DC |
|---|---|
| Power Source | AC Power |
| Number of SFP Slots | 1 |
