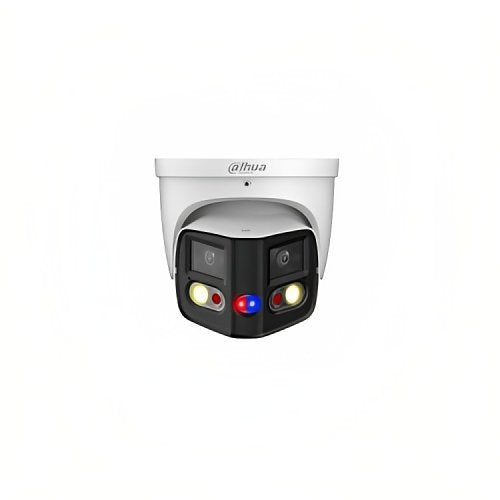

Dahua Technology DH-IPC-PDW3849P-A180-E2-AS-PV-0280B eyeball network camera
Free Delivery
About this product
Dahua Technology DH-IPC-PDW3849P-A180-E2-AS-PV-0280B is an eyeball network camera from the Panoramic Series range.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Key features
- Outputs 180 degrees wide angle splicing image
- Outputs max. 8MP (4096 × 1860) at 20 fps
- H.265 Codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, the max. IR illumination distance is 25m and warm light distance is 20m
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- WDR, 3D NR, HLC, BLC, Digital watermarking, applicable to various monitoring scenes
- Alarm, 1 input, 1 output; audio, 1 input, 1 output; supports max. 256GB Micro SD card; built in dual mic; built in speaker, support two-way talk
- 12V DC/PoE Power supply, easy for installation
- IP67 Protection
- Sound and light alarm (red and blue lights)
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-IPC-PDW3849P-A180-E2-AS-PV-0280B
Product Series
Panoramic Series
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
8MP
Field of View
Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Aperture
f/1.4
Maximum Frame Rate
20fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Active Illumination, Near-Infrared (NIR)
Number of IR LEDs
2
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
25.00m
Certifications
Ingress protection
IP67
Display & graphics
Number of Sensors
2
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Minimum Illumination
0.0005lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Dustproof
Form Factor
Eyeball
Weight
990.00g
Power description
Input Voltage
12V DC
Product information
Diameter
122.00mm
Mount Type
Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Miscellaneous
Features
3D Noise Reduction, Back Light Compensation (BLC), Day/Night, Gain Control, Highlight Compensation (HLC), Motion Detection, Region of Interest, Video Management System, White Balance, Wide Dynamic Range
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
12V DC
Weight
990.00g
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-IPC-PDW3849P-A180-E2-AS-PV-0280B |
| Product Series | Panoramic Series |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 20fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Number of IR LEDs | 2 |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 25.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Number of Sensors | 2 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dustproof |
| Form Factor | Eyeball |
| Weight | 990.00g |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 122.00mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Features | 3D Noise Reduction, Back Light Compensation (BLC), Day/Night, Gain Control, Highlight Compensation (HLC), Motion Detection, Region of Interest, Video Management System, White Balance, Wide Dynamic Range |
|---|
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 990.00g |
