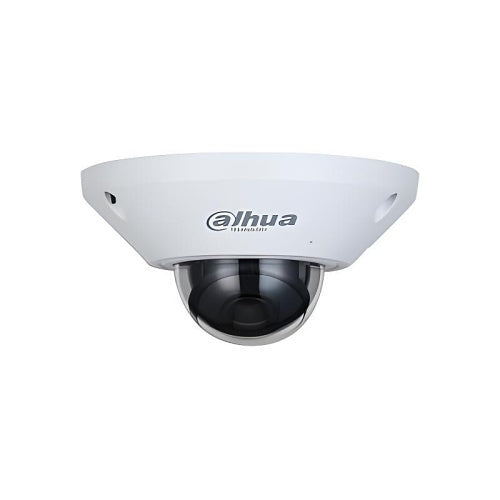

Dahua Technology DH-IPC-EB5541P-M12-SA fisheye camera, 5MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Dahua Technology DH-IPC-EB5541P-M12-SA is a fisheye camera.

Discover the Dahua DH-IPC-EB5541P-M12-SA 5MP Fisheye Camera, designed to elevate your surveillance experience. Featuring a 1.4mm fixed lens, this camera captures stunning high-resolution images, ensuring every detail is crystal clear. Its innovative fisheye design provides a wide field of view, making it perfect for monitoring large areas with ease.

Built with advanced technology, this camera is reliable and efficient, making it an ideal choice for both home and business security.

Key features

  • 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
  • Outputs max. 5MP (2592 x 1944) at 25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire, people counting in area
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Built-in mic, supports max. 256GB Micro SD card
  • PoE power supply, easy for installation
  • Heat map for people counting, You can adjust the number of people, time threshold to generate a heat map, which can be exported

If you are matching this to an existing installation, work from the DH-IPC-EB5541P-M12-SA part number rather than the description.

Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-IPC-EB5541P-M12-SA
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
5MP
Field of View
Diagonal, Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed Focus
Maximum Aperture
f/2
Maximum Frame Rate
30fps
Minimum Focal Length
1.40mm
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG
Video Signal Format
PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2592 x 1944
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/3 Second
Minimum Illumination
0.0060lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
1.4mm
Lens Included
Yes
Maximum Focal Length
1.40mm
Network & communication
Remote Management
Yes
Physical characteristics
Form Factor
Fisheye
Weight
405.00g
Product information
Diameter
110.00mm
Length
62.00mm
Storage
Storage Type
SD Card
Video
Maximum Resolution
2592 x 1944
Miscellaneous
Impact protection
IK10
Attributes
Indoor or outdoor use
Indoor, Outdoor
Weight
405.00g

Specifications

Brand Name Dahua Technology
Manufacturer Part Number DH-IPC-EB5541P-M12-SA
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 5MP
Field of View Diagonal, Horizontal, Vertical
Lens Mount Type M12 (S-Mount)
Lens Type Fixed Focus
Maximum Aperture f/2
Maximum Frame Rate 30fps
Minimum Focal Length 1.40mm
Video Formats H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG
Video Signal Format PAL
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS

Certifications

Ingress protection IP67

Display & graphics

Maximum video resolution 2592 x 1944

Environmental conditions

Maximum Operating Temperature 55°C
Minimum Operating Temperature -30°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/3 Second
Minimum Illumination 0.0060lux
Shortest Shutter Speed 1/100000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 1.4mm
Lens Included Yes
Maximum Focal Length 1.40mm

Network & communication

Remote Management Yes

Physical characteristics

Form Factor Fisheye
Weight 405.00g

Product information

Diameter 110.00mm
Length 62.00mm

Storage

Storage Type SD Card

Video

Maximum Resolution 2592 x 1944

Miscellaneous

Impact protection IK10

Attributes

Indoor or outdoor use Indoor, Outdoor
Weight 405.00g

Dahua Technology DH-IPC-EB5541P-M12-SA fisheye camera

Dahua Technology DH-IPC-EB5541P-M12-SA fisheye camera, 5MP

Who this is for

For the installer — this is the fisheye camera supplied under Dahua Technology part number DH-IPC-EB5541P-M12-SA. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a fisheye camera made by Dahua Technology. The part number DH-IPC-EB5541P-M12-SA is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this fisheye camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact fisheye camera I have been quoted? Check the manufacturer part number DH-IPC-EB5541P-M12-SA against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against DH-IPC-EB5541P-M12-SA answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
