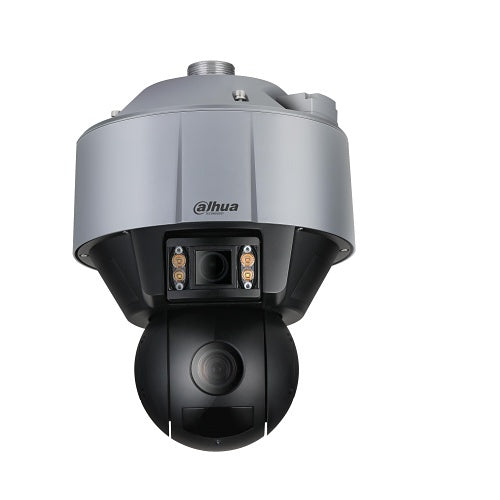

Dahua Technology DH-SDT5X425-4Z4-FA-0832 IP dual-ptz camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SDT5X425-4Z4-FA-0832 is an IP dual-ptz camera from the X-Spans range.
Introducing the Dahua DH-SDT5X425-4Z4-FA-0832 X-Spans Series 4MP Starlight IR WizMind IP Dual-PTZ Camera. This advanced surveillance solution features an 8-32mm varifocal lens and an impressive 25x optical zoom, ensuring you capture every detail with clarity. Designed for durability, it boasts an IP67 rating, making it resistant to dust and water.
Perfect for both indoor and outdoor use, this camera is ideal for enhancing your security system.
Key features
- Dual PTZ system, dual vari-focal lens
- 1/1.8" 4MP MOS
- Powerful 25× optical zoom
- Starlight technology
- Max. 25/30 fps at 4M
- Deep-learning-based auto tracking and perimeter protection
- Support Hi-PoE
- H.265 encoding
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SDT5X425-4Z4-FA-0832
Product Series
X-Spans
Product Type
Panoramic Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/4
Maximum Frame Rate
30fps
Minimum Focal Length
5.40mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
4
Optical Zoom
25.0x
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2688 x 1520
Number of Sensors
2
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/30,000 Second
Minimum Illumination
0.0010lux
Shortest Shutter Speed
1 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
8-32mm
Lens Included
Yes
Maximum Focal Length
135.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Form Factor
PTZ
Weight
9.00kg
Power description
Input Voltage
36V DC
Product information
Diameter
277.00mm
Mount Type
Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
2688 x 1520
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
36V DC
Package Contents
DC36V/2.23A Power Adapter; DH-SDT5X425-4Z4-FA-0832 4MP 25 Ordinary IR NETWORK PTZ CAMERA; PFB306W-S Wall Mount Bracket
Weight
9.00kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SDT5X425-4Z4-FA-0832 |
| Product Series | X-Spans |
| Product Type | Panoramic Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.40mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 4 |
| Optical Zoom | 25.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 100.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/30,000 Second |
|---|---|
| Minimum Illumination | 0.0010lux |
| Shortest Shutter Speed | 1 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 8-32mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 135.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Weight | 9.00kg |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Diameter | 277.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2688 x 1520 |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 36V DC |
|---|---|
| Package Contents | DC36V/2.23A Power Adapter; DH-SDT5X425-4Z4-FA-0832 4MP 25 Ordinary IR NETWORK PTZ CAMERA; PFB306W-S Wall Mount Bracket |
| Weight | 9.00kg |
