Dahua Technology DH-SDT5X425-4Z4-FA-2812 IP dual-ptz camera, 4MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

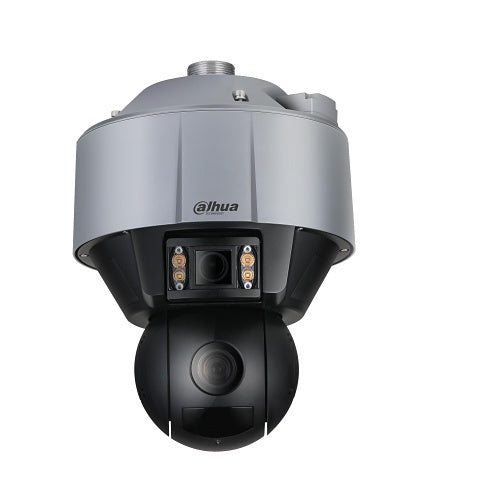

Dahua Technology DH-SDT5X425-4Z4-FA-2812 is an IP dual-ptz camera from the X-Spans range.

Introducing the Dahua DH-SDT5X425-4Z4-FA-2812 X-Spans Series 4MP Starlight IR WizMind IP Dual-PTZ Camera. This advanced surveillance solution features a versatile 2.8-12mm varifocal lens, providing exceptional clarity and detail with its impressive 25x optical zoom. Designed for durability, it boasts an IP67 rating, ensuring reliable performance in various weather conditions.

Perfect for both indoor and outdoor use, this camera is equipped with Starlight technology for superior low-light performance. Enhance your security setup with this state-of-the-art camera and experience peace of mind.

Key features

  • Dual PTZ system, dual vari-focal lens
  • 1/1.8" 4MP CMOS
  • Powerful 25× optical zoom
  • Starlight technology
  • Max. 25/30 fps at 4M
  • Deep-learning-based auto tracking and perimeter protection
  • Support Hi-PoE
  • H.265 encoding

If you are matching this to an existing installation, work from the DH-SDT5X425-4Z4-FA-2812 part number rather than the description.

Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SDT5X425-4Z4-FA-2812
Product Series
X-Spans
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/4
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
4
Optical Zoom
25.0x
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/30,000 Second
Minimum Illumination
0.0010lux
Shortest Shutter Speed
1 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8-12mm
Maximum Focal Length
135.00mm
Minimum Aperture
f/2
Physical characteristics
Form Factor
PTZ
Height
385.00mm
Weight
9.00kg
Power description
Input Voltage
36V DC
Product information
Diameter
277.00mm
Mount Type
Ceiling Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
2688 x 1520
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
36V DC
Weight
9.00kg

Specifications

Brand Name Dahua Technology
Manufacturer Part Number DH-SDT5X425-4Z4-FA-2812
Product Series X-Spans

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/4
Maximum Frame Rate 30fps
Minimum Focal Length 2.80mm
Night Vision Yes
Night Vision Type Infrared (IR)
Number of IR LEDs 4
Optical Zoom 25.0x
Video Formats H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 100.00m

Certifications

Ingress protection IP67

Display & graphics

Maximum video resolution 2688 x 1520

Environmental conditions

Maximum Operating Temperature 65°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/30,000 Second
Minimum Illumination 0.0010lux
Shortest Shutter Speed 1 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 2.8-12mm
Maximum Focal Length 135.00mm
Minimum Aperture f/2

Physical characteristics

Form Factor PTZ
Height 385.00mm
Weight 9.00kg

Power description

Input Voltage 36V DC

Product information

Diameter 277.00mm
Mount Type Ceiling Mount, Pole Mount, Wall Mount

Storage

Storage Type SD Card

Video

Maximum Resolution 2688 x 1520

Miscellaneous

Indoor or outdoor use Indoor, Outdoor

Attributes

Input Voltage 36V DC
Weight 9.00kg

Dahua Technology DH-SDT5X425-4Z4-FA-2812 IP dual-ptz camera

Dahua Technology DH-SDT5X425-4Z4-FA-2812 IP dual-ptz camera, 4MP

Who this is for

For the installer — this is the IP dual-ptz camera supplied under Dahua Technology part number DH-SDT5X425-4Z4-FA-2812. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an IP dual-ptz camera made by Dahua Technology. The part number DH-SDT5X425-4Z4-FA-2812 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP dual-ptz camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP dual-ptz camera I have been quoted? Check the manufacturer part number DH-SDT5X425-4Z4-FA-2812 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against DH-SDT5X425-4Z4-FA-2812 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
