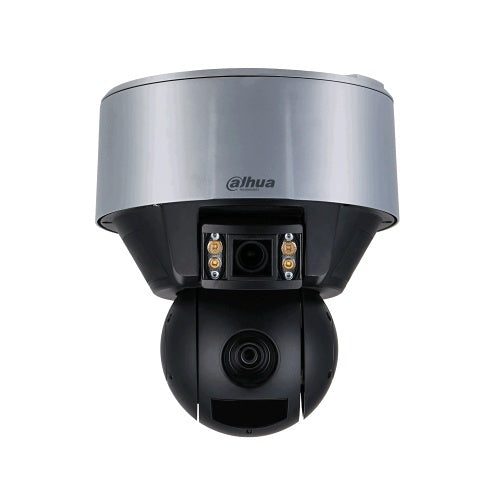

Dahua Technology DH-SDT5X425-4Z4-QA-0832 IP dual-ptz camera, 4MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Dahua Technology DH-SDT5X425-4Z4-QA-0832 is an IP dual-ptz camera from the WizMind range.

Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS, NVR, PTZ, XVR, Thermal, and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable, and comprehensive AI solutions for verticals.

Key features

  • Dual PTZ system, dual vari-focal lens
  • 1/1.8" 4MP CMOS
  • Powerful 25x Optical Zoom
  • Starlight technology
  • Max. 25/30 fps at 4M
  • Deep-learning-based auto tracking and perimeter protection
  • Support Hi-PoE
  • H.265 Encoding
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SDT5X425-4Z4-QA-0832
Product Series
WizMind
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/4
Maximum Frame Rate
30fps
Minimum Focal Length
5.40mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
4
Optical Zoom
25.0x
Video Formats
H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Video Resolution
2688 x 1520
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2560 x 1440
Number of Sensors
2
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1 s
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/30000 s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
5.4-135mm, 8-32mm
Maximum Focal Length
32.00mm
Minimum Aperture
f/1.6
Physical characteristics
Form Factor
PTZ
Height
385.00mm
Weight
9.00kg
Power description
Input Voltage
36V DC
Product information
Diameter
277.00mm
Mount Type
Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
36V DC
Weight
9.00kg

Specifications

Brand Name Dahua Technology
Manufacturer Part Number DH-SDT5X425-4Z4-QA-0832
Product Series WizMind
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Varifocal
Maximum Aperture f/4
Maximum Frame Rate 30fps
Minimum Focal Length 5.40mm
Night Vision Yes
Night Vision Type Infrared (IR)
Number of IR LEDs 4
Optical Zoom 25.0x
Video Formats H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Video Resolution 2688 x 1520
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 100.00m

Certifications

Ingress protection IP67

Display & graphics

Maximum video resolution 2560 x 1440
Number of Sensors 2

Environmental conditions

Maximum Operating Temperature 65°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1 s
Minimum Illumination 0.0000lux
Shortest Shutter Speed 1/30000 s

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 5.4-135mm, 8-32mm
Maximum Focal Length 32.00mm
Minimum Aperture f/1.6

Physical characteristics

Form Factor PTZ
Height 385.00mm
Weight 9.00kg

Power description

Input Voltage 36V DC

Product information

Diameter 277.00mm
Mount Type Ceiling Mount, Corner Mount, Pole Mount, Wall Mount

Storage

Storage Type SD Card

Video

Maximum Resolution 2560 x 1440

Miscellaneous

Indoor or outdoor use Indoor, Outdoor

Attributes

Input Voltage 36V DC
Weight 9.00kg

Dahua Technology DH-SDT5X425-4Z4-QA-0832 IP dual-ptz camera

Dahua Technology DH-SDT5X425-4Z4-QA-0832 IP dual-ptz camera, 4MP

Who this is for

For the installer — this is the IP dual-ptz camera supplied under Dahua Technology part number DH-SDT5X425-4Z4-QA-0832. Specify it by that part number.

In plain English: this is an IP dual-ptz camera made by Dahua Technology. The part number DH-SDT5X425-4Z4-QA-0832 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP dual-ptz camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP dual-ptz camera I have been quoted? Check the manufacturer part number DH-SDT5X425-4Z4-QA-0832 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.
