Dahua Technology DH-EPC245U-PTZ-IR IP positioning system, 2MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

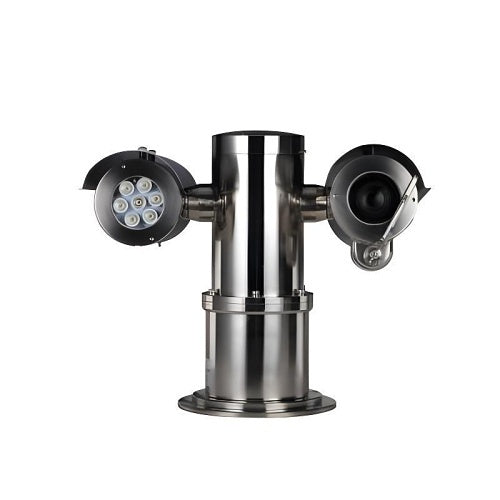

Dahua Technology DH-EPC245U-PTZ-IR is an IP positioning system.

Introducing the Dahua DH-EPC245U-PTZ-IR, a cutting-edge 2MP explosion-proof IR IP positioning system designed for superior surveillance in challenging environments. With a versatile lens range of 3.95-177.7mm and an impressive 45x optical zoom, this system ensures crystal-clear images from great distances. Its robust construction guarantees reliability and durability, making it ideal for industrial applications.

Experience enhanced security and peace of mind with this advanced positioning system.

Key features

  • 1/2.8" 2MP STARVIS CMOS
  • Powerful 45x optical zoom
  • 316L Stainless steel housing
  • Starlight technology
  • H.265/H.264 Triple-stream Encoding
  • Max. 50/60fps at 1080P
  • IR Distance up to 200m
  • IP68
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-EPC245U-PTZ-IR
Product Type
Network Positioning System
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Horizontal
Lens Type
Fixed
Maximum Aperture
f/1.6
Maximum Frame Rate
60fps
Minimum Focal Length
4.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
7
Optical Zoom
45.0x
Video Resolution
1920 x 1080
Video Signal Format
PAL
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
200.00m
Certifications
Ingress protection
IP68
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/1 Second
Minimum Illumination
0.0005lux
Shortest Shutter Speed
1/30000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.95-177.7mm
Lens Included
Yes
Maximum Focal Length
177.70mm
Minimum Aperture
f/4.95
Physical characteristics
Durability
Vandal Resistant
Form Factor
Explosion Proof
Weight
35.00kg
Power description
Input Voltage
100-240V AC
Product information
Diameter
517.00mm
Storage
Storage Type
SD Card
Video
Maximum Resolution
1920 x 1080
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
100-240V AC
Weight
35.00kg

Specifications

Brand Name Dahua Technology
Manufacturer Part Number DH-EPC245U-PTZ-IR
Product Type Network Positioning System

Technical information

Connectivity Technology Wired
Effective resolution 2MP
Field of View Horizontal
Lens Type Fixed
Maximum Aperture f/1.6
Maximum Frame Rate 60fps
Minimum Focal Length 4.00mm
Night Vision Yes
Night Vision Type Infrared (IR)
Number of IR LEDs 7
Optical Zoom 45.0x
Video Resolution 1920 x 1080
Video Signal Format PAL
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 200.00m

Certifications

Ingress protection IP68

Display & graphics

Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -40°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/1 Second
Minimum Illumination 0.0005lux
Shortest Shutter Speed 1/30000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 3.95-177.7mm
Lens Included Yes
Maximum Focal Length 177.70mm
Minimum Aperture f/4.95

Physical characteristics

Durability Vandal Resistant
Form Factor Explosion Proof
Weight 35.00kg

Power description

Input Voltage 100-240V AC

Product information

Diameter 517.00mm

Storage

Storage Type SD Card

Video

Maximum Resolution 1920 x 1080

Miscellaneous

Indoor or outdoor use Indoor, Outdoor

Attributes

Input Voltage 100-240V AC
Weight 35.00kg

Dahua Technology DH-EPC245U-PTZ-IR IP positioning system

Dahua Technology DH-EPC245U-PTZ-IR IP positioning system, 2MP

Who this is for

For the installer — this is the IP positioning system supplied under Dahua Technology part number DH-EPC245U-PTZ-IR. Specify it by that part number.

In plain English: this is an IP positioning system made by Dahua Technology. The part number DH-EPC245U-PTZ-IR is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP positioning system is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP positioning system I have been quoted? Check the manufacturer part number DH-EPC245U-PTZ-IR against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Dahua Technology DH-EPC245U-PTZ-IR IP positioning system
Dahua Technology

Dahua Technology DH-EPC245U-PTZ-IR IP positioning system, 2MP

£12,742.17

Please note: this is a non-returnable item (excluding faulty goods)

Dahua Technology DH-EPC245U-PTZ-IR is an IP positioning system.

Introducing the Dahua DH-EPC245U-PTZ-IR, a cutting-edge 2MP explosion-proof IR IP positioning system designed for superior surveillance in challenging environments. With a versatile lens range of 3.95-177.7mm and an impressive 45x optical zoom, this system ensures crystal-clear images from great distances. Its robust construction guarantees reliability and durability, making it ideal for industrial applications.

Experience enhanced security and peace of mind with this advanced positioning system.

Key features
