Dahua Technology PTZ83440-HNF-PA IP positioning system, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)

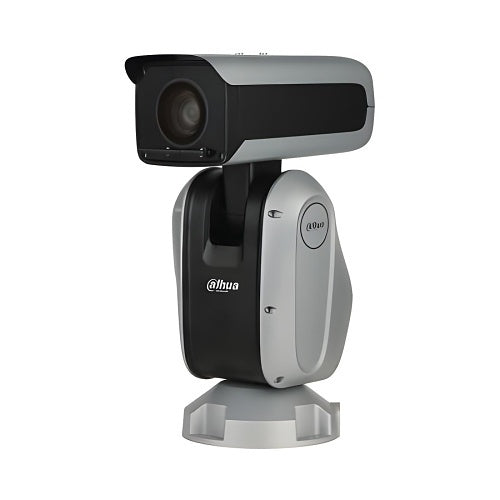

Dahua Technology PTZ83440-HNF-PA is an IP positioning system.
Dahua PTZ WizMind network camera adopts advanced CNN deep learning algorithms to support Perimeter Protection with high accuracy. This camera possesses wide monitoring range and PFA algorithm that can always present a clear and focused image while zooming. The camera has excellent low light performance due to the latest starlight technology.
The camera is equipped with smooth control, high quality image and good protection, enabling it meet most of the requirements of video surveillance applications.
Key features
- 1/1.8" 4MP STARVIS CMOS
- Powerful 40x optical zoom
- Starlight technology
- Max. 25/30 fps at 4M
- IR distance up to 350 m
- Perimeter protection
- Video Metadata
- Face recognition
- Auto-tracking
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
PTZ83440-HNF-PA
Product Type
PTZ Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/4.5
Maximum Frame Rate
30fps
Minimum Focal Length
5.50mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
10
Optical Zoom
40.0x
Video Formats
H.264 / AVC, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
350.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2560 x 1440
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/1 Second
Minimum Illumination
0.0010lux
Shortest Shutter Speed
1/30,000 s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
5.5-220mm
Maximum Focal Length
220.00mm
Minimum Aperture
f/1.4
Network & communication
Remote Management
Yes
Physical characteristics
Form Factor
PTZ
Height
498.70mm
Weight
14.00kg
Width
210.70mm
Power description
Input Voltage
36V DC
Product information
Length
366.50mm
Mount Type
Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Features
1/1.8" 4Megapixel STARVIS CMOS, Auto-tracking, Face recognition, IR distance up to 350 m, Max. 25/30 fps@4M, Perimeter protection, Powerful 40x optical zoom, Starlight technology, Video Metadata
Attributes
Indoor or outdoor use
Outdoor
Input Voltage
36V DC
Weight
14.00kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | PTZ83440-HNF-PA |
| Product Type | PTZ Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/4.5 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.50mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 10 |
| Optical Zoom | 40.0x |
| Video Formats | H.264 / AVC, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 350.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Minimum Illumination | 0.0010lux |
| Shortest Shutter Speed | 1/30,000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 5.5-220mm |
|---|---|
| Maximum Focal Length | 220.00mm |
| Minimum Aperture | f/1.4 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 498.70mm |
| Weight | 14.00kg |
| Width | 210.70mm |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Length | 366.50mm |
|---|---|
| Mount Type | Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Features | 1/1.8" 4Megapixel STARVIS CMOS, Auto-tracking, Face recognition, IR distance up to 350 m, Max. 25/30 fps@4M, Perimeter protection, Powerful 40x optical zoom, Starlight technology, Video Metadata |
|---|
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 36V DC |
| Weight | 14.00kg |
