Dahua Technology DH-SD1A404DB-GNY IP PTZ camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)

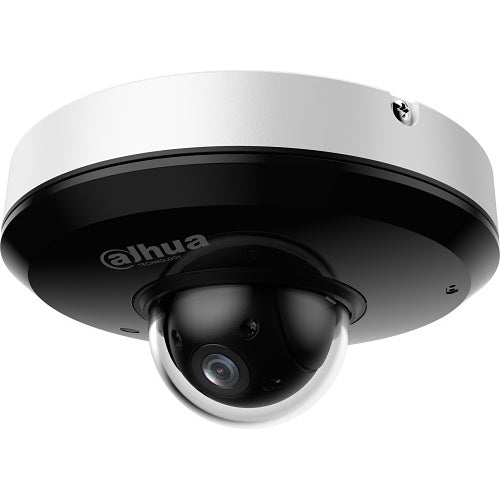

Dahua Technology DH-SD1A404DB-GNY is an IP PTZ camera from the WizSense range.
Introducing the Dahua DH-SD1A404DB-GNY WizSense Series 4MP PTZ Camera, designed to elevate your security experience. This advanced camera features a versatile 2.8-12mm lens, providing exceptional clarity and detail in various lighting conditions, thanks to its Starlight IR technology. Built to withstand the elements, it boasts an IP66 rating for water and dust resistance, along with IK08 impact protection for added durability.
Perfect for both indoor and outdoor use, this camera ensures reliable surveillance wherever you need it. Don't compromise on safety—invest in the Dahua DH-SD1A404DB-GNY today and secure your peace of mind!
Key features
- 1/2.8" 4MP CMOS
- 4x Optical zoom
- Starlight technology
- Max. 25/30 fps at 4MP
- IR Distance up to 20m
- Perimeter protection
- Face detection
- SMD 3.0
- Built-in mic
- IP66, IK08
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SD1A404DB-GNY
Product Series
WizSense
Product Type
PTZ Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/2.7
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
3
Optical Zoom
4.0x
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264+, H.265 / HEVC, H.265+, MJPEG
Video Resolution
2560 x 1440
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
20.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2560 x 1440
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0005lux
Shortest Shutter Speed
1/30000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8-12mm
Lens Included
Yes
Maximum Focal Length
12.00mm
Minimum Aperture
f/1.8
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Impact Resistant, Weather Resistant
Form Factor
Dome
Height
65.70mm
Weight
0.50kg
Power description
Input Voltage
12V DC
Product information
Diameter
128.00mm
Mount Type
Ceiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Impact protection
IK08
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
12V DC
Weight
0.50kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD1A404DB-GNY |
| Product Series | WizSense |
| Product Type | PTZ Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/2.7 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 3 |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
| Minimum Aperture | f/1.8 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Impact Resistant, Weather Resistant |
| Form Factor | Dome |
| Height | 65.70mm |
| Weight | 0.50kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 128.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Impact protection | IK08 |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 0.50kg |
