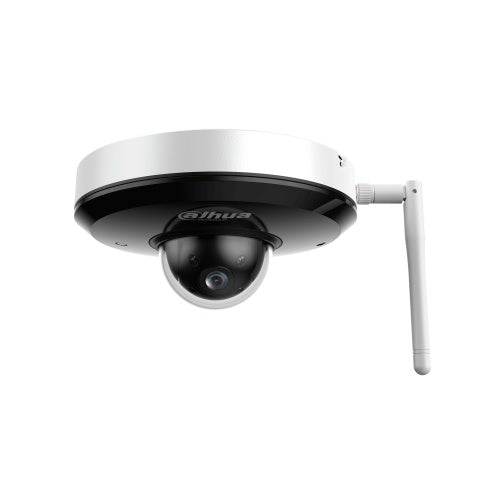

Dahua Technology DH-SD1A404DB-GNY-W IP PTZ camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD1A404DB-GNY-W is an IP PTZ camera from the WizSense range.
Introducing the Dahua DH-SD1A404DB-GNY-W, a cutting-edge wireless PTZ camera designed for superior surveillance. With a remarkable 4MP resolution and a versatile 4x optical zoom, this camera ensures crystal-clear images day and night, thanks to its advanced Starlight IR technology. The 2.8-12mm lens provides flexibility in capturing wide or detailed views, while its robust IP66 and IK08 ratings guarantee durability against harsh weather and vandalism.
Perfect for both indoor and outdoor settings, this camera is an ideal choice for enhancing your security system.
Key features
- 1/2.8" 4MP CMOS
- 4x Optical zoom
- Starlight technology
- Max. 25/30 fps at 4MP
- IR distance up to 20m
- Perimeter protection
- Face detection
- SMD 3.0
- Built-in Mic
- IP66, IK08
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD1A404DB-GNY-W |
| Product Series | WizSense |
| Product Type | PTZ Camera |
Technical information
| Connectivity Technology | Wired, Wireless |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/2.7 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 3 |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
| Minimum Aperture | f/2.7 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 65.70mm |
| Weight | 0.50kg |
| Width | 128.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 128.00mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Impact protection | IK08 |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 0.50kg |
