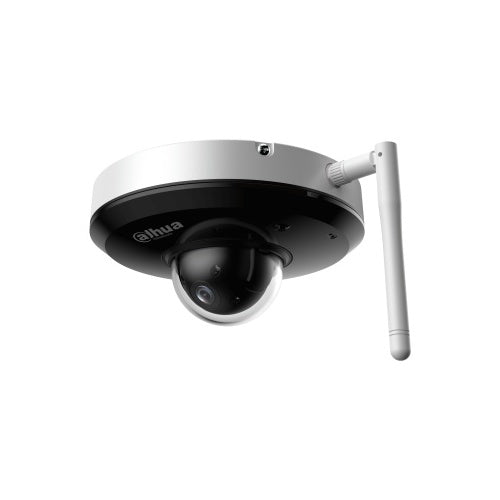

Dahua Technology DH-SD1A404DB-GNY-W-PV IP PTZ camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD1A404DB-GNY-W-PV is an IP PTZ camera from the WizSense range.
With its powerful optical zoom, and accurate pan and tilt capabilities, this series of cameras provides an all-in-one solution for large-scale monitoring. It displays images in 2MP resolution at 25 fps and 30 fps. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small sized scenes.
Key features
- 1/2.8" 4MP CMOS
- 4x optical zoom
- Starlight technology
- Max. 25/30 fps at 4MP
- IR distance up to 20m
- Perimeter protection
- Face detection
- SMD 3.0
- Built-in mic
- IP66, IK08
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD1A404DB-GNY-W-PV |
| Product Series | WizSense |
| Product Type | PTZ Camera |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired, Wireless |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/2.7 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 3 |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 20.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
| Minimum Aperture | f/2.7 |
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 65.70mm |
| Weight | 0.50kg |
| Width | 128.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 128.00mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Impact protection | IK08 |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 0.50kg |
Dahua Technology DH-SD1A404DB-GNY-W-PV IP PTZ camera, 4MP
