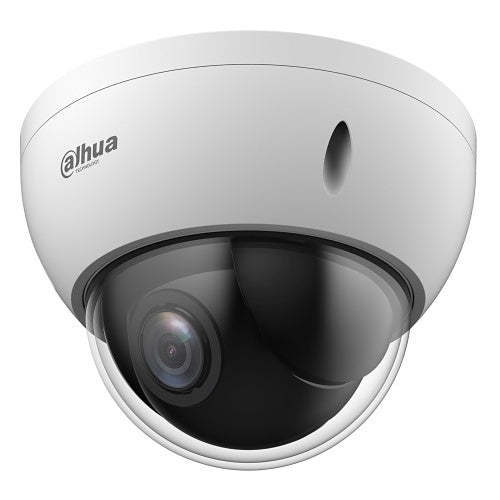

Dahua Technology DH-SD22404DB-GNY IP PTZ camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD22404DB-GNY is an IP PTZ camera from the WizSense range.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.
Key features
- 1/2.8" STARVIS CMOS
- Powerful 4x Optical Zoom
- Max.25/30 fps at 4M/3M
- Max 100 deg/s pan speed
- Supports face detection
- Support Wi-Fi
- 6000V Lightning-proof
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SD22404DB-GNY
Product Series
WizSense
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/3
Maximum Frame Rate
30fps
Optical Zoom
4.0x
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Video Resolution
2560 x 1440
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2560 x 1440
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/1 s
Minimum Illumination
0.0005lux
Shortest Shutter Speed
1/30000 s
Lens
Maximum Focal Length
12.00mm
Minimum Aperture
f/1.6
Physical characteristics
Colour
White
Form Factor
PTZ
Height
95.90mm
Weight
0.50kg
Power description
Input Voltage
12V DC
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Environmental certification
ANSI C63.4:2014, CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032, EN IEC 61000-3-2/EN55024/EN55035/EN50130-4
Environmental status
Yes
Impact protection
IK10
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
12V DC
Weight
0.50kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD22404DB-GNY |
| Product Series | WizSense |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/3 |
| Maximum Frame Rate | 30fps |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 2560 x 1440 |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 s |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/30000 s |
Lens
| Maximum Focal Length | 12.00mm |
|---|---|
| Minimum Aperture | f/1.6 |
Physical characteristics
| Colour | White |
|---|---|
| Form Factor | PTZ |
| Height | 95.90mm |
| Weight | 0.50kg |
Power description
| Input Voltage | 12V DC |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Environmental certification | ANSI C63.4:2014, CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032, EN IEC 61000-3-2/EN55024/EN55035/EN50130-4 |
|---|---|
| Environmental status | Yes |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 0.50kg |
Dahua Technology DH-SD22404DB-GNY IP PTZ camera, 4MP
