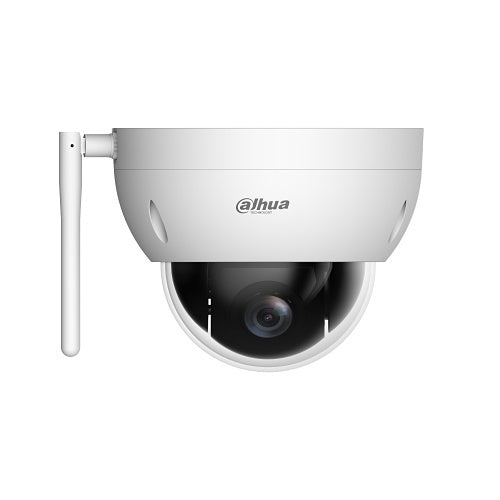

Dahua Technology DH-SD22404DB-GNY-W IP PTZ camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD22404DB-GNY-W is an IP PTZ camera from the WizSense range.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.
With its powerful Optical Zoom, and accurate pan and tilt capabilities, this series of cameras provides a wide monitoring range and great detail. It displays images in 4 MP resolution at 25/30 fps. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small-sized scenes.
Key features
- Powerful 4x Optical Zoom
- Maximum25/30 fps at 4M/3M
- Max 100 deg/s pan speed
- Supports face detection
- Support Wi-Fi
- 6000V Lightning-proof
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD22404DB-GNY-W |
| Product Series | WizSense |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/3 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 4.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 s |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/30000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-12mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
| Minimum Aperture | f/1.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Vandal Resistant, Weather Resistant |
| Form Factor | Dome |
| Height | 95.90mm |
| Weight | 0.50kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 122.70mm |
|---|---|
| Mount Type | Ceiling Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Environmental certification | ANSI C63.4:2014 |
|---|---|
| Environmental status | Yes |
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 0.50kg |
