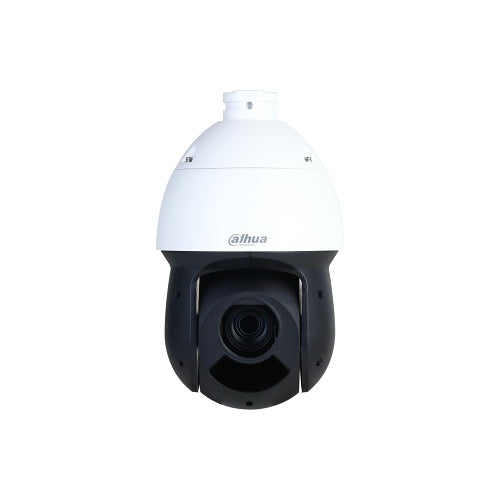

Dahua Technology DH-SD49216DB-HNY IP PTZ camera, 2MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD49216DB-HNY is an IP PTZ camera from the WizSense range.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.
Key features
- Starlight technology
- Maximum 25/30 fps at 1080p
- IR Distance up to 100m
- H.265 Encoding
- Perimeter protection
- Face detection up to 8 faces captured at the same time
-
Download
- DH-SD49216DB-HNY — Product Manual
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SD49216DB-HNY
Product Series
WizSense
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Frame Rate
30fps
Minimum Focal Length
5.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
16.0x
Video Formats
H.265 / HEVC
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1 s
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/30000 s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
5-8mm
Lens Included
Yes
Maximum Focal Length
80.00mm
Physical characteristics
Colour
White
Form Factor
PTZ
Height
270.40mm
Weight
2.40kg
Power description
Input Voltage
24V DC
Product information
Diameter
160.00mm
Mount Type
Ceiling Mount, Corner Mount, Parapet Mount, Pole Mount, Surface Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
1920 x 1080
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
24V DC
Weight
2.40kg
