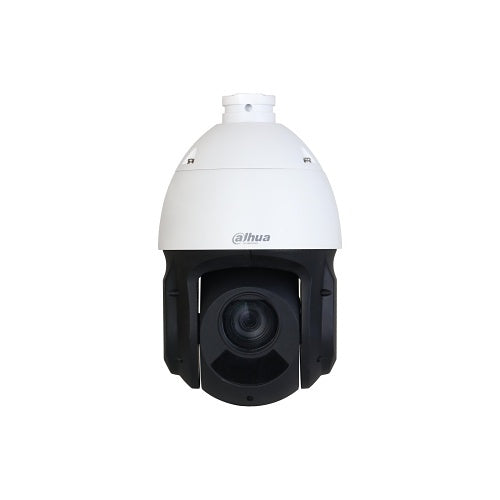

Dahua Technology DH-SD49425DB-HNY-GQ-EAU IP PTZ camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD49425DB-HNY-GQ-EAU is an IP PTZ camera from the WizSense range.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.
Key features
- Starlight technology
- Maximum 25/30 fps at 4M
- IR Distance up to 100m
- Perimeter protection
- Face detection
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD49425DB-HNY-GQ-EAU |
| Product Series | WizSense |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wireless |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/3.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 3 |
| Optical Zoom | 25.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 100.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 s |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/30000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 5-125mm |
|---|---|
| Maximum Focal Length | 125.00mm |
| Minimum Aperture | f/1.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 270.40mm |
| Weight | 2.60kg |
| Width | 151.40mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 160.00mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Environmental certification | ANSI C63.4-2014, CE: EN55032/EN55024/EN50130-4 |
|---|---|
| Environmental status | Yes |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 2.60kg |
