Dahua Technology DH-SD4A425DB-HNY IP PTZ camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)

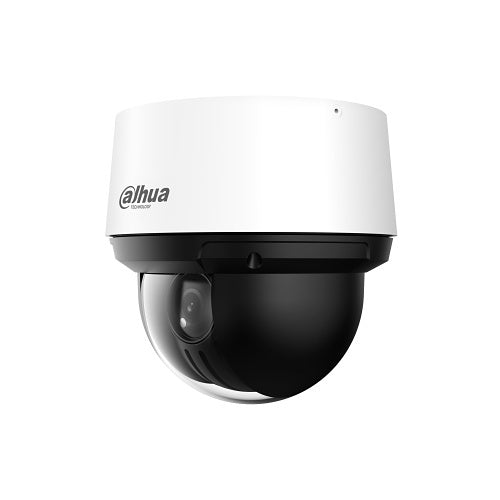

Dahua Technology DH-SD4A425DB-HNY is an IP PTZ camera.
Introducing the Dahua DH-SD4A425DB-HNY, a cutting-edge 4MP IP PTZ camera designed for superior surveillance. With its impressive 25x optical zoom and invisible IR capabilities, this camera ensures clear and detailed images even in low-light conditions. The WizSense technology enhances intelligent video analytics, making it easier to monitor your surroundings effectively.
Ideal for both residential and commercial use, this camera combines advanced features with user-friendly operation.
Key features
- 1/2.8" 4MP STARVIS CMOS
- 25x optical zoom
- Starlight technology
- Max. 25/30fps at 4MP
- IR distance up to 100m
- Auto-tracking 1.0
- Perimeter protection
- Face detection
- SMD 3.0
-
Download
- DH-SD4A425DB-HNY — Product Manual
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SD4A425DB-HNY
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/3.6
Maximum Frame Rate
30fps
Minimum Focal Length
5.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
6
Optical Zoom
25.0x
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
2560 x 1440
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/30,000 Second
Minimum Illumination
0.0050lux
Shortest Shutter Speed
1/1 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
5-125mm
Maximum Focal Length
125.00mm
Minimum Aperture
f/1.6
Physical characteristics
Form Factor
Dome
Height
170.40mm
Weight
2.50kg
Power description
Input Voltage
12V DC
Product information
Diameter
171.10mm
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Input Voltage
12V DC
Weight
2.50kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD4A425DB-HNY |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/3.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 6 |
| Optical Zoom | 25.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 100.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/30,000 Second |
|---|---|
| Minimum Illumination | 0.0050lux |
| Shortest Shutter Speed | 1/1 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 5-125mm |
|---|---|
| Maximum Focal Length | 125.00mm |
| Minimum Aperture | f/1.6 |
Physical characteristics
| Form Factor | Dome |
|---|---|
| Height | 170.40mm |
| Weight | 2.50kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 171.10mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 2.50kg |
