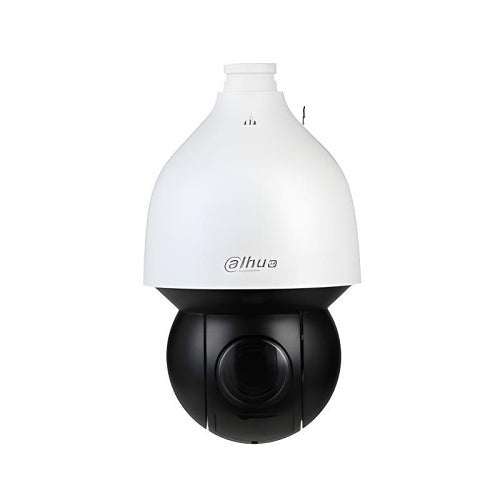

Dahua Technology DH-SD5A232XA-HNR IP PTZ camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD5A232XA-HNR is an IP PTZ camera from the WizSense range.
Introducing the Dahua DH-SD5A232XA-HNR WizSense Series 2MP Starlight IR IP PTZ Camera, designed for superior surveillance. This advanced camera features a 1/2.8" 2MP STARVIS CMOS sensor, ensuring exceptional image quality even in low light. With a powerful 32x optical zoom, you can capture distant details with clarity.
It supports up to 50/60 fps at 1080P for smooth video playback. The IR capability extends up to 150m, providing reliable night vision. Enhanced with deep-learning-based auto tracking and perimeter protection, it offers intelligent monitoring.
Built to last, it meets IP67 and IK10 standards for durability.
Key features
- 1/2.8" 2MP STARVIS CMOS
- Powerful 32x optical zoom
- Max. 50/60 fps at 1080P
- IR distance up to 150m
- Deep-learning-based auto tracking and perimeter protection
- SMD plus
- PoE+
- IP67, IK10
- Face detection
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD5A232XA-HNR |
| Product Series | WizSense |
| Product Type | PTZ Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1.35 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.90mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 4 |
| Optical Zoom | 32.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 1920 x 1080 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 150.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.9-156mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 156.00mm |
| Minimum Aperture | f/4.4 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Form Factor | Dome |
| Height | 332.00mm |
| Weight | 8.00kg |
Power description
| Input Voltage | 24V DC |
|---|
Product information
| Diameter | 190.00mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 1920 x 1080 |
|---|
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 24V DC |
| Weight | 8.00kg |
