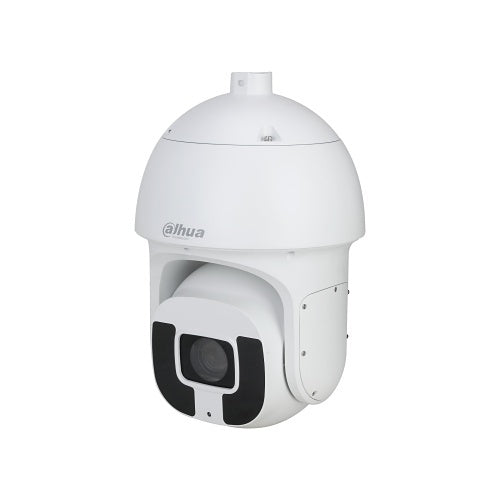

Dahua Technology DH-SD8A3440GA-HNV IP PTZ camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD8A3440GA-HNV is an IP PTZ camera from the WizMind range.
Embedded with an advanced AI chip, this series of cameras provides an all-in-one solution for video surveillance of large areas. Outranking conventional cameras with its extended monitoring range, it automatically tracks targets. It also produces vivid images whether day or night, using infrared technology.
It is suitable for a wide variety of scenarios, such as advanced defense areas that require high levels of control. You can also have the camera custom-made with an anti-corrosion structure and IK10.
Key features
- 1/1.8" 4MP STARVIS CMOS
- 40x Optical Zoom
- Starlight technology
- IR Distance up to 150m
- Auto-tracking
- Perimeter protection
- Face detection
- Metadata and SMD
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
DH-SD8A3440GA-HNV
Product Series
WizMind
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/4.9
Maximum Frame Rate
30fps
Minimum Focal Length
5.60mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
10
Optical Zoom
40.0x
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Video Resolution
2560 x 1440
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
500.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2560 x 1440
Number of Sensors
1
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/1 s
Minimum Illumination
0.0000lux
Shortest Shutter Speed
1/30000 s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
5.6-223mm
Lens Included
Yes
Maximum Focal Length
223.00mm
Minimum Aperture
f/1.6
Physical characteristics
Form Factor
PTZ
Height
415.90mm
Weight
8.50kg
Power description
Input Voltage
36V DC
Product information
Diameter
262.00mm
Mount Type
Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Impact protection
IK10
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
36V DC
Weight
8.50kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD8A3440GA-HNV |
| Product Series | WizMind |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/4.9 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.60mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 10 |
| Optical Zoom | 40.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 500.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|---|
| Number of Sensors | 1 |
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 s |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/30000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 5.6-223mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 223.00mm |
| Minimum Aperture | f/1.6 |
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 415.90mm |
| Weight | 8.50kg |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Diameter | 262.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 36V DC |
| Weight | 8.50kg |
