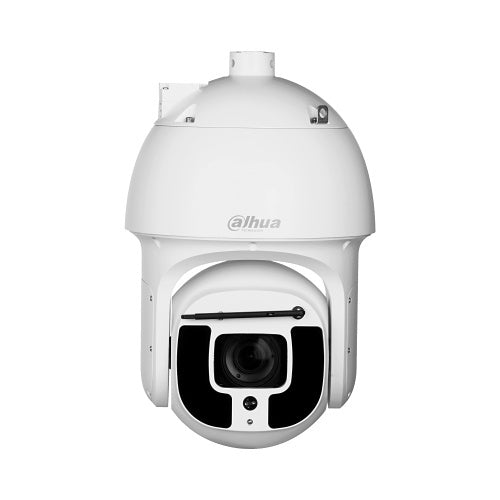

Dahua Technology DH-SD8A840FA-HNT IP PTZ camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD8A840FA-HNT is an IP PTZ camera from the WizMind range.
Introducing the Dahua DH-SD8A840FA-HNT WizMind Series 8MP Starlight IR IP PTZ Camera, designed specifically for traffic monitoring. This advanced camera features a versatile 5.6-223mm varifocal lens, providing exceptional 40x optical zoom capabilities for detailed surveillance. With its IP67 rating, it ensures durability and reliability in various weather conditions.
Experience superior image quality even in low light, making it an ideal choice for any security setup.
Key features
- 1/1.8" 8MP STARVIS CMOS
- Powerful 40x optical zoom
- Starlight technology
- Max. 25/30 fps at 8MP
- H.265 encoding
- Illegal parking detection
- ANPR
-
Download
- DH-SD8A840FA-HNT — Product Manual
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD8A840FA-HNT |
| Product Series | WizMind |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Effective resolution | 8MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/4.5 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.60mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 10 |
| Optical Zoom | 40.0x |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 500.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/30,000 Second |
|---|---|
| Minimum Illumination | 0.0050lux |
| Shortest Shutter Speed | 1/1 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 5.6-223mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 223.00mm |
| Minimum Aperture | f/4.5 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Depth | 66.40mm |
|---|---|
| Form Factor | PTZ |
| Height | 415.90mm |
| Weight | 8.50kg |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Diameter | 262.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Surface Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 3840 x 2160 |
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 36V DC |
|---|---|
| Weight | 8.50kg |
Dahua Technology DH-SD8A840FA-HNT IP PTZ camera, 8MP
