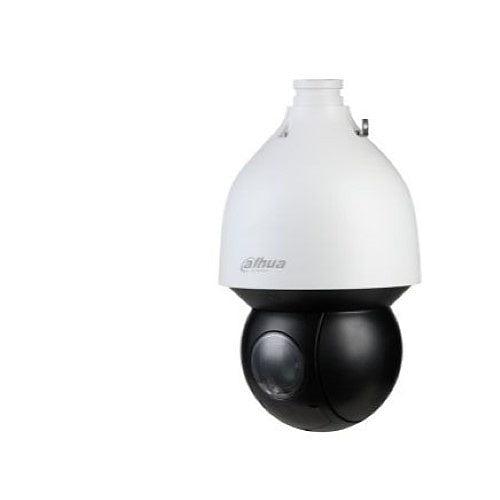

Dahua Technology SD5A425GB-HNR IP PTZ camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology SD5A425GB-HNR is an IP PTZ camera from the WizSense range.
Unique and elegant, the black semicircular sphere discreetly monitors from a distance without drawing undue attention to itself. It has a powerful optical zoom, and accurate pan, tilt and zoom capabilities, providing an all-in-one solution for long distance video surveillance of outdoor scenes. Together with infrared illumination and Starlight Technology, the camera is a great solution for dark, low light conditions.
The series combines a day and night mechanical IR cut filter to produce high quality images in variable lighting conditions during the day, and True WDR for locations with direct sunlight and glare.
Key features
- 1/28" 4MP CMOS
- Powerful 25x Optical Zoom
- Starlight Technology
- Max 25/30fps at 4MP
- IR Distance up to 150m
- Deep-learning-based perimeter protection
- Auto-tracking 30 and IVS
- SMD 40
- IP67 and IK10 Protection
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
SD5A425GB-HNR
Product Series
WizSense
Product Type
Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Zoom
Maximum Aperture
f/3.6
Maximum Frame Rate
25fps
Minimum Focal Length
5.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
4
Optical Zoom
25.0x
Video Formats
H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+
Video Resolution
2560 x 1440
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
150.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum Illumination
0.005lux
Maximum video resolution
2560 x 1440
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0005lux
Shortest Shutter Speed
1/30000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
5-125mm
Lens Included
Yes
Maximum Focal Length
125.00mm
Minimum Aperture
f/1.6
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Voltage Transient Resistant
Form Factor
Dome
Height
332.00mm
Weight
4.70kg
Power description
Input Voltage
24V DC
Product information
Diameter
190.00mm
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Environmental certification
CE, UL
Environmental status
Yes
Features
1/2.8" 4MP CMOS., Auto-tracking 3.0 and IVS, Deep-learning-based perimeter protection., IP67, IK10., IR distance up to 150 m, Max. 25/30fps at 4MP., Powerful 25x optical zoom., SMD 4.0, Starlight technology.
Impact protection
IK10
Indoor or outdoor use
Outdoor
Attributes
Input Voltage
24V DC
Weight
4.70kg
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | SD5A425GB-HNR |
| Product Series | WizSense |
| Product Type | Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Zoom |
| Maximum Aperture | f/3.6 |
| Maximum Frame Rate | 25fps |
| Minimum Focal Length | 5.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 4 |
| Optical Zoom | 25.0x |
| Video Formats | H.264 / AVC, H.264 Baseline Profile, H.264 High Profile, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 150.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum Illumination | 0.005lux |
|---|---|
| Maximum video resolution | 2560 x 1440 |
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 5-125mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 125.00mm |
| Minimum Aperture | f/1.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Voltage Transient Resistant |
| Form Factor | Dome |
| Height | 332.00mm |
| Weight | 4.70kg |
Power description
| Input Voltage | 24V DC |
|---|
Product information
| Diameter | 190.00mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Environmental certification | CE, UL |
|---|---|
| Environmental status | Yes |
| Features | 1/2.8" 4MP CMOS., Auto-tracking 3.0 and IVS, Deep-learning-based perimeter protection., IP67, IK10., IR distance up to 150 m, Max. 25/30fps at 4MP., Powerful 25x optical zoom., SMD 4.0, Starlight technology. |
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 24V DC |
|---|---|
| Weight | 4.70kg |
Dahua Technology SD5A425GB-HNR IP PTZ camera, 4MP
