Dahua Technology DH-EPC230U ir IP camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)

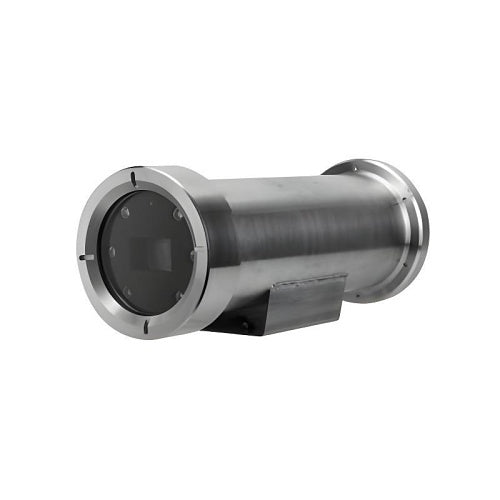

Dahua Technology DH-EPC230U is an ir IP camera.
Introducing the Dahua DH-EPC230U 2MP Explosion-Proof IR IP Camera, designed for those who demand high performance in challenging environments. Featuring a 1/2.8" 2MP STARVIS CMOS sensor, this camera delivers stunning image quality even in low light, thanks to its advanced Starlight technology. The powerful 30x optical zoom allows for detailed monitoring from a distance, while the robust 304 stainless steel housing ensures durability.
With H.265 encoding, you can enjoy efficient video compression without sacrificing quality. Experience smooth video at up to 50/60 fps in 1080P, and benefit from intelligent video analytics support. The camera boasts an impressive IR range of up to 100m, making it ideal for nighttime surveillance.
Certified with ATEX and IECEx, and rated IP68 for water and dust resistance, this camera is built to withstand the toughest conditions. Order yours today!
Key features
- 1/2.8" 2MP STARVIS CMOS
- Powerful 30x optical zoom
- 304 Stainless steel housing
- Starlight technology
- H.265 Encoding
- Max. 50/60fps at 1080P
- Support IVS
- IR distance up to 100m
- ATEX and IECEx Certification
- IP68
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-EPC230U |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Horizontal |
| Lens Type | Fixed |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4.50mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 6 |
| Optical Zoom | 30.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC |
| Video Resolution | 1920 x 1080 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 100.00m |
Certifications
| Ingress protection | IP68 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.5-135mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 135.00mm |
| Minimum Aperture | f/4.4 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Durability | Dustproof, Explosionproof, Waterproof |
| Form Factor | Explosion Proof |
| Weight | 10.40kg |
Power description
| Input Voltage | 100-240V AC |
|---|
Product information
| Diameter | 396.10mm |
|---|---|
| Mount Type | Ceiling Mount, Junction Box Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Video
| Maximum Resolution | 1920 x 1080 |
|---|
Miscellaneous
| Features | Back Light Compensation (BLC), Built-in Card Reader, Built-in HLC, Day/Night, Electronic Image Stabilization, Face Detection, Motion Detection, Noise Reduction, Privacy Masking, Region of Interest |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 100-240V AC |
| Weight | 10.40kg |
