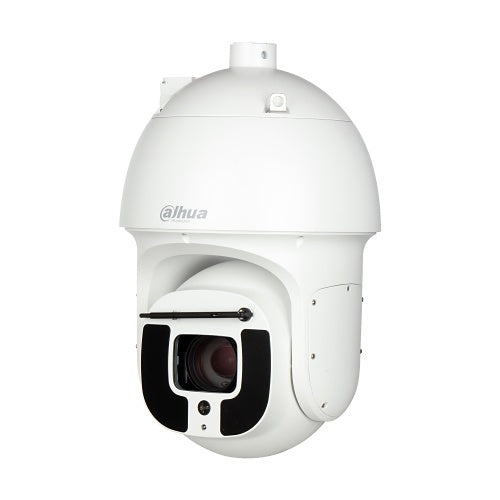

Dahua Technology DH-SD8A840XA-HNP-WP monitoring IP camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SD8A840XA-HNP-WP is a monitoring IP camera from the WizMind range.
The 8MP 40x Starlight WizMind Hydrological Monitoring IP Camera has a built-in neural network processor, and adopts advanced WizMind deep learning technology. Recognizes standard and virtual water level markers. Triggers an alarm when the water level exceeds any of the limits, the device is suitable for various river scenes.
With PTZ control, the cost of device deployment and scene adjustment can be greatly reduced. Multiple presets can be set at the same time to effectively increase coverage, and intelligent multi-scenario tour can be used to improve capture efficiency.
Key features
- Powerful 40x Optical Zoom
- IR Distance up to 250m
- Maximum 25/30 fps at 4K
- Water level marker detection and calibration
- Water level marker joining
- Boat detection
-
Download
- DH-SD8A840XA-HNP-WP — Product Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SD8A840XA-HNP-WP |
| Product Series | WizMind |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/4.5 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 5.50mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 10 |
| Optical Zoom | 40.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG, Smart H.264+, Smart H.265+ |
| Video Resolution | 3840 x 2160 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 250.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 s |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/30000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 5.5-220mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 220.00mm |
| Minimum Aperture | f/1.4 |
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 415.90mm |
| Weight | 8.50kg |
| Width | 262.00mm |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Diameter | 162.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Surface Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Video
| Analog Video Signal Format | CVBS (Composite Video Baseband Signal) |
|---|---|
| Maximum Resolution | 3840 x 2160 |
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 36V DC |
|---|---|
| Weight | 8.50kg |
Dahua Technology DH-SD8A840XA-HNP-WP monitoring IP camera, 8MP
