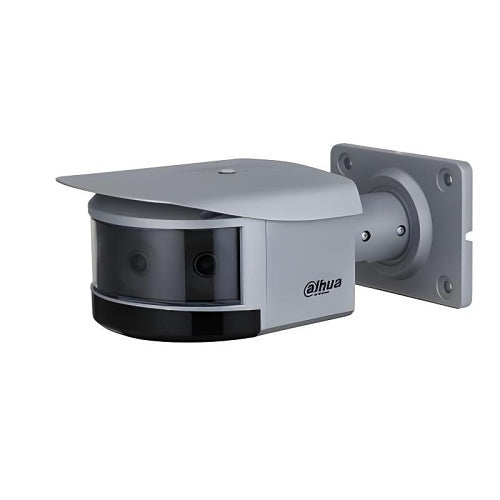

Dahua Technology PFW81642-A180 network camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology PFW81642-A180 is a network camera.
Introducing the Dahua PFW81642-A180, a cutting-edge 4x4MP multi-sensor panoramic bullet IP camera designed to elevate your surveillance experience. Featuring a 2.8mm lens, this camera captures stunning high-definition images, ensuring no detail goes unnoticed. Its advanced Wizmind technology enhances video analytics, making it perfect for both residential and commercial applications.
With its robust design, this camera is built to withstand various weather conditions, providing reliable performance year-round. Don't compromise on security—invest in the Dahua PFW81642-A180 today and enjoy peace of mind with top-tier surveillance capabilities!
Key features
- Four 4MP 1/1.8" CMOS image sensors, low luminance, and high definition image
- Outputs max. 16MP (5520 x 2700) at 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Three streams for HD video display
- Built-in IR LED, and the max. illumination distance is 30m
- 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Alarm - 2 in, 2 out; audio - 1 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card
- 12VDC / 24VAC / PoE power supply, easy for installation
- IP67 and IK10 protection
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | PFW81642-A180 |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Horizontal, Vertical |
| Lens Mount Type | M16 |
| Lens Type | Fixed Focus |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 8 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Number of Sensors | 4 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Minimum Illumination | 0.0001lux |
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | Bullet |
|---|---|
| Weight | 3.79kg |
Power description
| Input Voltage | 12V DC |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 3.79kg |
