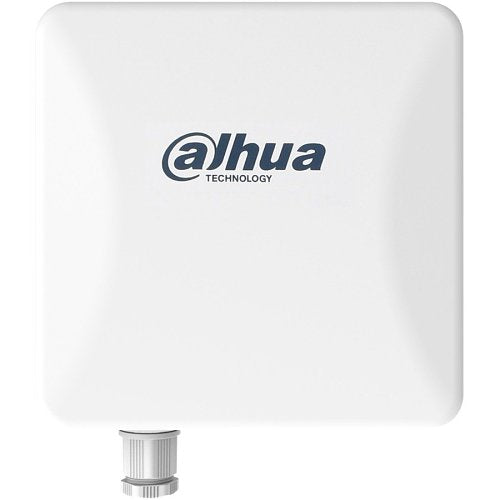

Dahua Technology PFWB5-10N outdoor wireless cpe, IP66

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Dahua Technology PFWB5-10N is an outdoor wireless cpe.

Dahua's DH-PFWB5-10n delivers the highest performance and stability available in the 5 GHz CPE class. This product combines a highly advanced radio core containing MIMO 2x2 technology with an integrated, high-gain, dual polarization directional antenna. The feature-rich operating system is optimized for ultra-high performance wireless communications while optionally allowing compatibility with older 802.11 a standard devices.

Key features

  • Integrated 5 GHz (2 x 2) MIMO Radio
  • Recommended for up to 5 km (3.16 mi)PTP/PTMP Wireless Connection (as a station in PTMP link)
  • Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
  • High-performance and Stable Operation
  • Improved Noise Immunity
  • TDMA for Reliable Communication
  • Dual Firmware
  • IP66 Ingress Protection
  • Built-in tools include: Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace for Configuration and Debugging
  • Recommended for 0~5km PTP/PTMP wireless connection(as a station in PTMP link)

If you are matching this to an existing installation, work from the PFWB5-10N part number rather than the description.

Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Dahua Technology
Manufacturer Part Number
PFWB5-10N
Product Type
Radio Modem
Technical information
Frequency Band
5.00GHz
Power Consumption
4.5000W
Wi-Fi Generation
Wi-Fi 4
Wireless LAN Standard
802.11a, 802.11n
Wireless Transmission Speed
300.00Mbps
Certifications
Ingress protection
IP66
Interfaces/ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Network & communication
Ethernet Technology
100 Mbps (Fast Ethernet)
Physical characteristics
Colour
Silver
Depth
1023.62mm
Form Factor
Pole Mount, Wall Mount
Height
80.80mm
Width
184.90mm
Power description
PoE (RJ-45) Port
Yes
Product information
Mount Type
Pole Mount, Wall Mount
Miscellaneous
Features
MIMO Technology, Wi-Fi
Indoor or outdoor use
Outdoor
Package Contents
5 GHz Outdoor Wireless CPE Combination Wall / Pole Mount 24 V Passive PoE Adapter
Attributes
Package Contents
5 GHz Outdoor Wireless CPE Combination Wall / Pole Mount 24 V Passive PoE Adapter

Specifications

Brand Name Dahua Technology
Manufacturer Part Number PFWB5-10N
Product Type Radio Modem

Technical information

Frequency Band 5.00GHz
Power Consumption 4.5000W
Wi-Fi Generation Wi-Fi 4
Wireless LAN Standard 802.11a, 802.11n
Wireless Transmission Speed 300.00Mbps

Certifications

Ingress protection IP66

Interfaces/ports

Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1

Network & communication

Ethernet Technology 100 Mbps (Fast Ethernet)

Physical characteristics

Colour Silver
Depth 1023.62mm
Form Factor Pole Mount, Wall Mount
Height 80.80mm
Width 184.90mm

Power description

PoE (RJ-45) Port Yes

Product information

Mount Type Pole Mount, Wall Mount

Miscellaneous

Features MIMO Technology, Wi-Fi
Indoor or outdoor use Outdoor
Package Contents 5 GHz Outdoor Wireless CPE Combination Wall / Pole Mount 24 V Passive PoE Adapter

Attributes

Package Contents 5 GHz Outdoor Wireless CPE Combination Wall / Pole Mount 24 V Passive PoE Adapter

Dahua Technology PFWB5-10N outdoor wireless cpe

Dahua Technology PFWB5-10N outdoor wireless cpe, IP66

Who this is for

For the installer — this is the outdoor wireless cpe supplied under Dahua Technology part number PFWB5-10N. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an outdoor wireless cpe made by Dahua Technology. The part number PFWB5-10N is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this outdoor wireless cpe is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact outdoor wireless cpe I have been quoted? Check the manufacturer part number PFWB5-10N against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against PFWB5-10N answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Dahua Technology PFWB5-10N outdoor wireless cpe
Dahua Technology

Dahua Technology PFWB5-10N outdoor wireless cpe, IP66

£133.95

Please note: this is a non-returnable item (excluding faulty goods)

Dahua Technology PFWB5-10N is an outdoor wireless cpe.

Dahua's DH-PFWB5-10n delivers the highest performance and stability available in the 5 GHz CPE class. This product combines a highly advanced radio core containing MIMO 2x2 technology with an integrated, high-gain, dual polarization directional antenna. The feature-rich operating system is optimized for ultra-high performance wireless communications while optionally allowing compatibility with older 802.11 a standard devices.
