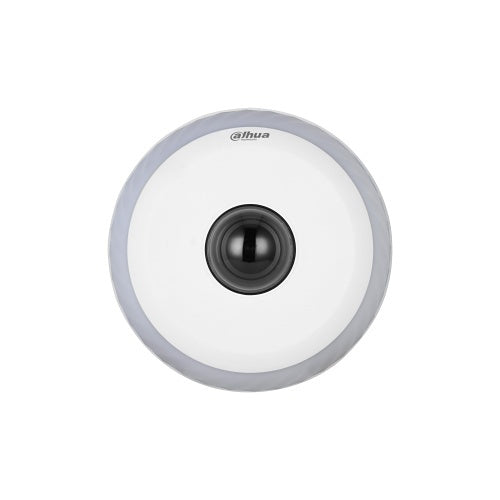

Dahua Technology DH-IPC-EB81242-PD panoramic camera, 8MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-IPC-EB81242-PD is a panoramic camera.
Introducing the Dahua DH-IPC-EB81242-PD Parking Space Detection Fisheye WizMind IP Camera, designed to enhance your parking management system. Featuring a wide 1.85mm lens, this camera captures expansive views, ensuring no detail is missed. With an IP67 rating, it is built to withstand harsh weather conditions, making it perfect for outdoor use.
This advanced camera utilizes WizMind technology for intelligent detection, providing reliable monitoring of parking spaces. Upgrade your surveillance setup with this innovative solution and experience peace of mind. Don't wait—secure your parking area today!
Key features
- Built-in GPU chip and deep learning algorithm, which can improve the detection accuracy
- Support up to 12 parking space status detection
- 360° panoramic view without dead angles in its monitoring range, making it cost-effective
- Outputs max. 3008 x 3000 at 20 fps
- 7 indicator colors that can be customized to display the status of parking spaces
- H.265 codec, high compression rate, ultra-low bit rate
- 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- DWDR, ROI, SMART H.264 /H.265 , flexible coding, applicable to various bandwidth and storage environments
- Alarm 2 in, 2 out; audio 1 in, 1 out; 485; BNC; supports max. 256GB Micro SD card
Specifications
Technical information
Camera
Certifications
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-IPC-EB81242-PD |
| Product Type | Panoramic Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 8MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Maximum Frame Rate | 20fps |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP67 |
|---|
Environmental conditions
| Maximum Operating Temperature | 45°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/100000 Second |
|---|---|
| Minimum Illumination | 0.0100lux |
| Shortest Shutter Speed | 1/3 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 1.85mm |
|---|---|
| Lens Included | Yes |
Physical characteristics
| Durability | Dustproof |
|---|---|
| Form Factor | Parking Space |
| Height | 0.08m |
| Weight | 0.78kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 175.20mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor, Outdoor |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 0.78kg |
