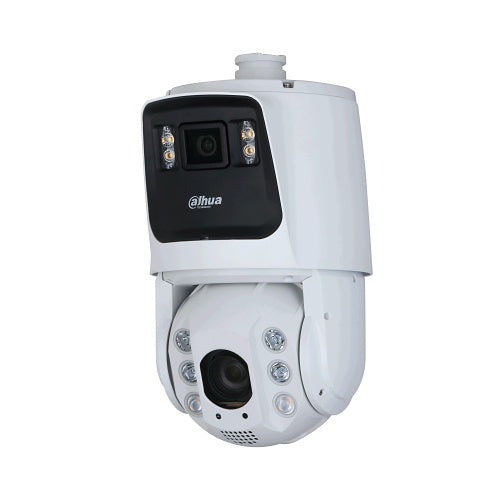

Dahua Technology DH-SDT7C424-4F-ZBZJ-APV-0400 PTZ camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology DH-SDT7C424-4F-ZBZJ-APV-0400 is a PTZ camera from the WizMind range.
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS, NVR, PTZ, XVR, Thermal, and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable, and comprehensive AI solutions for verticals.
Key features
- Panoramic 1/1.8" 4MP F1.0 STARVIS CMOS, Detail 1/2.8" 4MP STARVIS CMOS
- 24x Optical Zoom, 16x digital zoom
- Starlight technology
- Max. 25/30 fps at 4MP
- IR Distance up to 150m
- Auto-tracking
- Perimeter protection
- Sound and light alarm
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | DH-SDT7C424-4F-ZBZJ-APV-0400 |
| Product Series | WizMind |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/3.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Number of IR LEDs | 4 |
| Optical Zoom | 24.0x |
| Video Formats | H.264 Baseline Profile, H.264 High Profile, H.264 Main Profile, H.265 / HEVC, MJPEG, Smart H.264, Smart H.265 |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 150.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 s |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/30000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.8-115mm, 4mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 4.00mm |
| Minimum Aperture | f/1.6 |
Physical characteristics
| Form Factor | PTZ |
|---|---|
| Height | 358.00mm |
| Weight | 5.60kg |
| Width | 202.00mm |
Power description
| Input Voltage | 36V DC |
|---|
Product information
| Diameter | 202.00mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Environmental certification | CE: EN55032/EN55024/EN50130-4, Class A ANSI C63.4-2014 |
|---|---|
| Environmental status | Yes |
| Indoor or outdoor use | Indoor, Outdoor |
Attributes
| Input Voltage | 36V DC |
|---|---|
| Weight | 5.60kg |
Dahua Technology DH-SDT7C424-4F-ZBZJ-APV-0400 PTZ camera, 4MP
