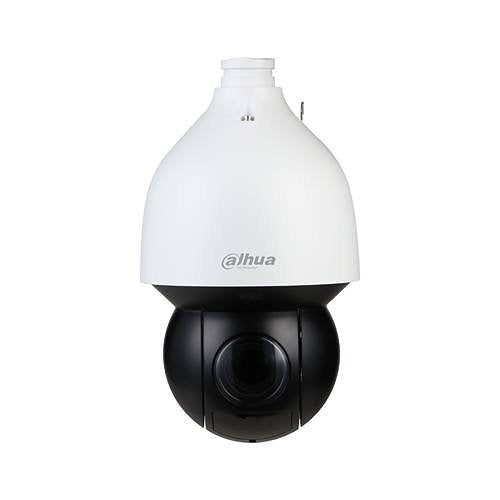

Dahua Technology SD5A445GB-HNR PTZ security camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Dahua Technology SD5A445GB-HNR is a PTZ security camera from the Network SD-5 Series range.
Dahua DH-SD5A445GB-HNR is a sleek black dome camera with powerful zoom and PTZ for long-range outdoor surveillance, day and night.
Key features
- 1/2.8" 4MP STARVIS CMOS
- 45x Optical zoom
- Starlight technology
- Max. 25/30 fps at 4M
- IR Distance up to 150m
- Auto-tracking 3.0
- Perimeter protection
- Face detection
- IP67, IK10
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Dahua Technology |
|---|---|
| Manufacturer Part Number | SD5A445GB-HNR |
| Product Series | Network SD-5 Series |
| Product Type | PTZ Security Cameras |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Zoom |
| Maximum Aperture | f/4.95 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.00mm |
| Night Vision | Yes |
| Night Vision Type | Active Illumination, Near-Infrared (NIR) |
| Number of IR LEDs | 4 |
| Optical Zoom | 45.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 150.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1440 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Minimum Illumination | 0.0005lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 3.95-177.75mm |
|---|---|
| Maximum Focal Length | 177.75mm |
| Minimum Aperture | f/1.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Form Factor | PTZ |
| Height | 332.00mm |
| Weight | 4.70kg |
| Width | 190.00mm |
Power description
| Input Voltage | 24V DC |
|---|
Product information
| Diameter | 190.00mm |
|---|---|
| Mount Type | Ceiling Mount, Corner Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | microSD Card, Network Attached Storage (NAS) |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Environmental certification | ANSI C63.4-2014, CE- EN55032, EN50130-4, EN55024, UL- UL60950-1 |
|---|---|
| Impact protection | IK10 |
| Indoor or outdoor use | Outdoor |
Attributes
| Input Voltage | 24V DC |
|---|---|
| Weight | 4.70kg |
